Microscope Objective HC PL APO 40x/1.30 OIL CS2
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11506428 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | E |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 0.17 |
| Immersion | Oil |
| Iris Diaphragm | Without |
| Magnification | 40⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-IMC, FLUO |
| Numerical Aperture | 1.3 |
| Objective Thread | M25 |
| Objective Type | PLAN APO |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | AFC suitable |
| Techniques | CS2 |

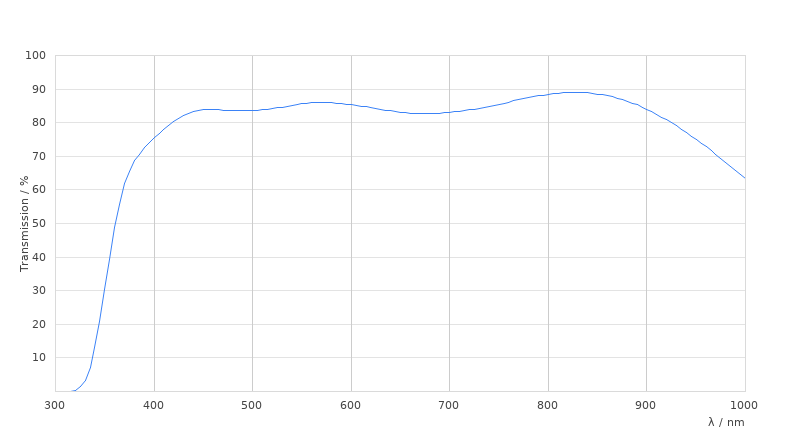

| Transmission | UV (340nm) |
