HC PL APO 40x/1.30 OIL

Article Number 11506429
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism E
Field Number (FN) 22
Free Working Distance (WD in mm) 0.17
Immersion Oil
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.3
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2

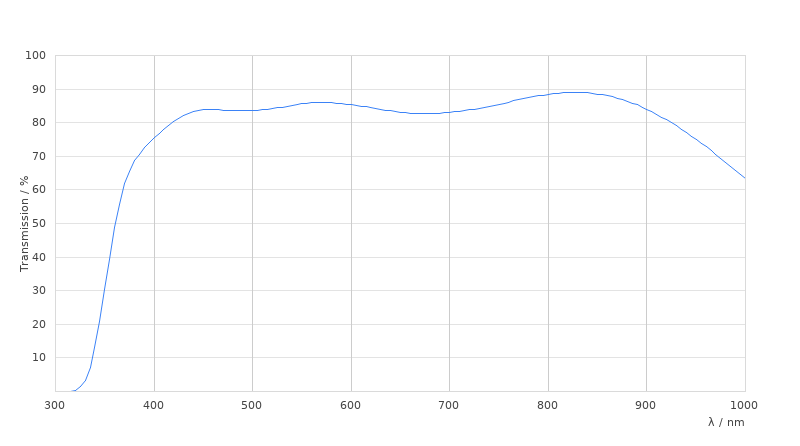

Transmission UV (340nm)


HC PL APO 40x/1.30 OIL

Dimension Sheet

HC PL APO 40x/1.30 OIL
