HC PL APO 20x/0,75 CS2

Article Number 11506517
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.62
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.75
Objective Thread M25
Objective Type PLAN APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2
Transmission UV (365nm)

Figure

HC PL APO 20x/0,75 CS2

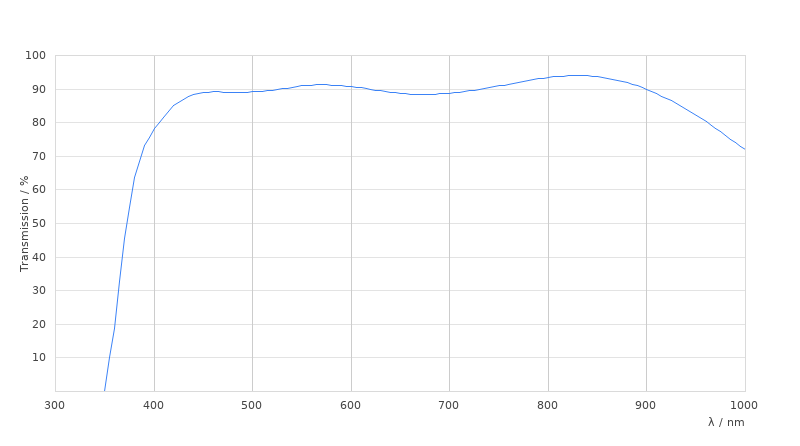

Transmission Curve

HC PL APO 20x/0,75 CS2

Dimension Sheet

HC PL APO 20x/0,75 CS2
