HC APO L 10x/0,30 W DLS

Article Number 11506524
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism D
Field Number (FN) 20
Free Working Distance (WD in mm) 3.6
Immersion Water
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DIC, TL-DF, FLUO
Numerical Aperture 0.3
Objective Thread M25
Objective Type APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques LightSheet, MP

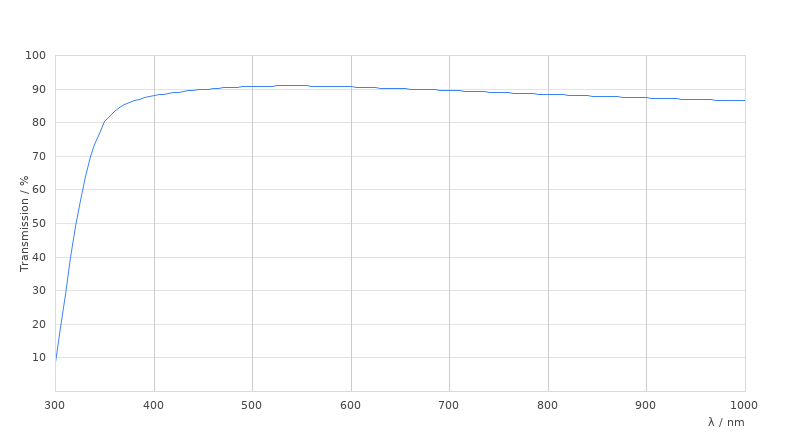

Transmission UV (340nm)

Figure

HC APO L 10x/0,30 W DLS

Dimension Sheet

HC APO L 10x/0,30 W DLS
