HC PL FLUOTAR 100x/1,32 -0,60 OIL

Article Number 11506527
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.18
Immersion Oil
Iris Diaphragm 0.6
Magnification 100⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, FLUO
Numerical Aperture 1.32
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques
Transmission UV (365nm)

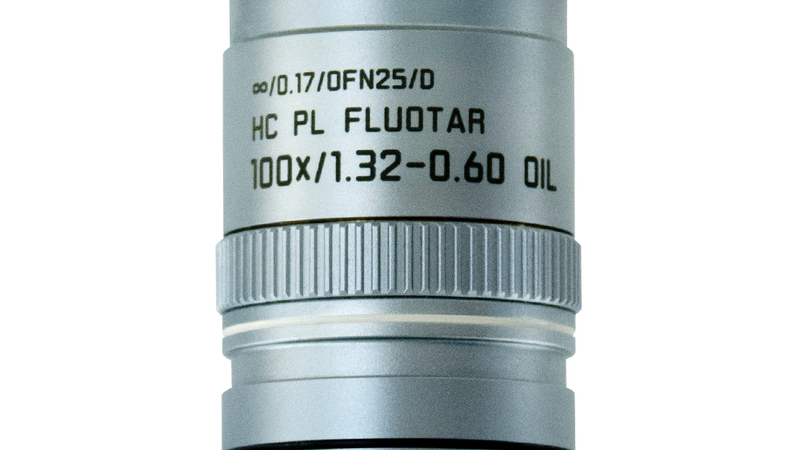

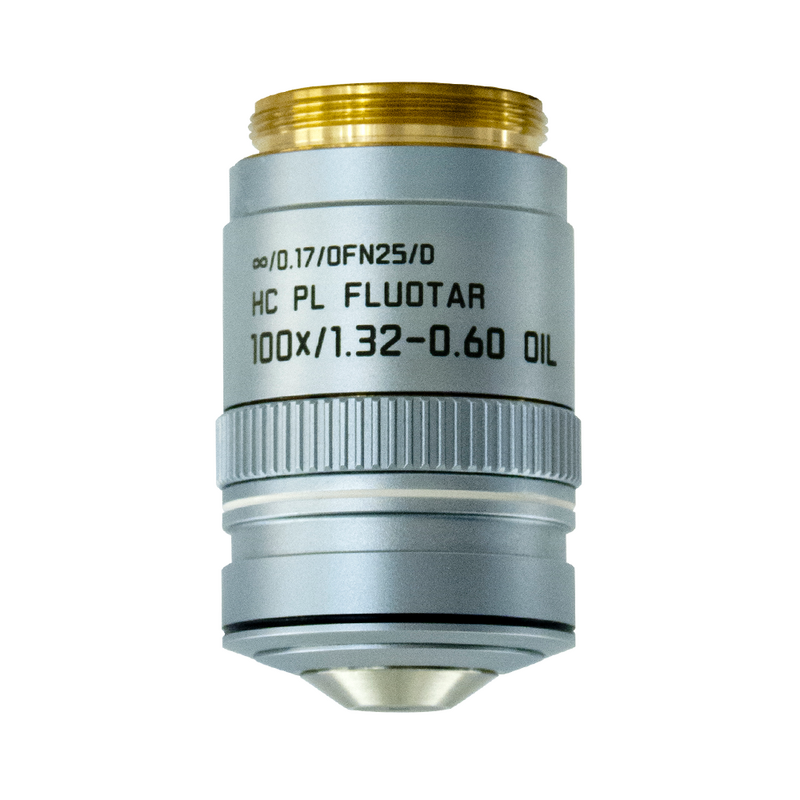

Figure

HC PL FLUOTAR 100x/1,32 -0,60 OIL

Transmission Curve

HC PL FLUOTAR 100x/1,32 -0,60 OIL
