HC PL FLUOTAR 100x/1,32 OIL

Article Number 11506528
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.27
Immersion Oil
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, FLUO
Numerical Aperture 1.32
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission UV (365nm)

Figure

HC PL FLUOTAR 100x/1,32 OIL

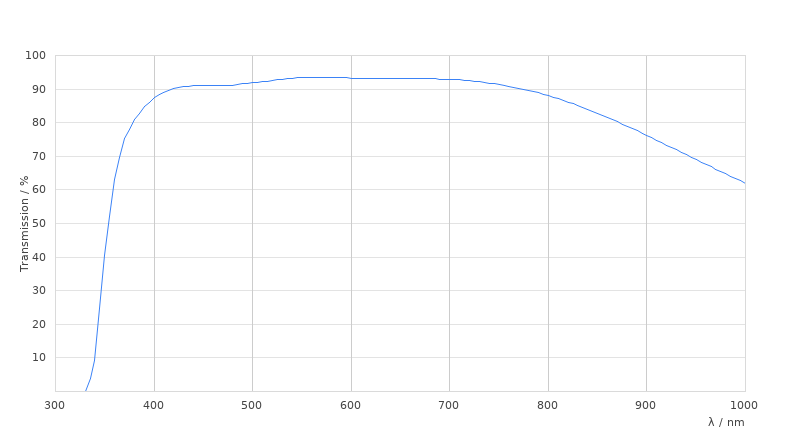

Transmission Curve

HC PL FLUOTAR 100x/1,32 OIL

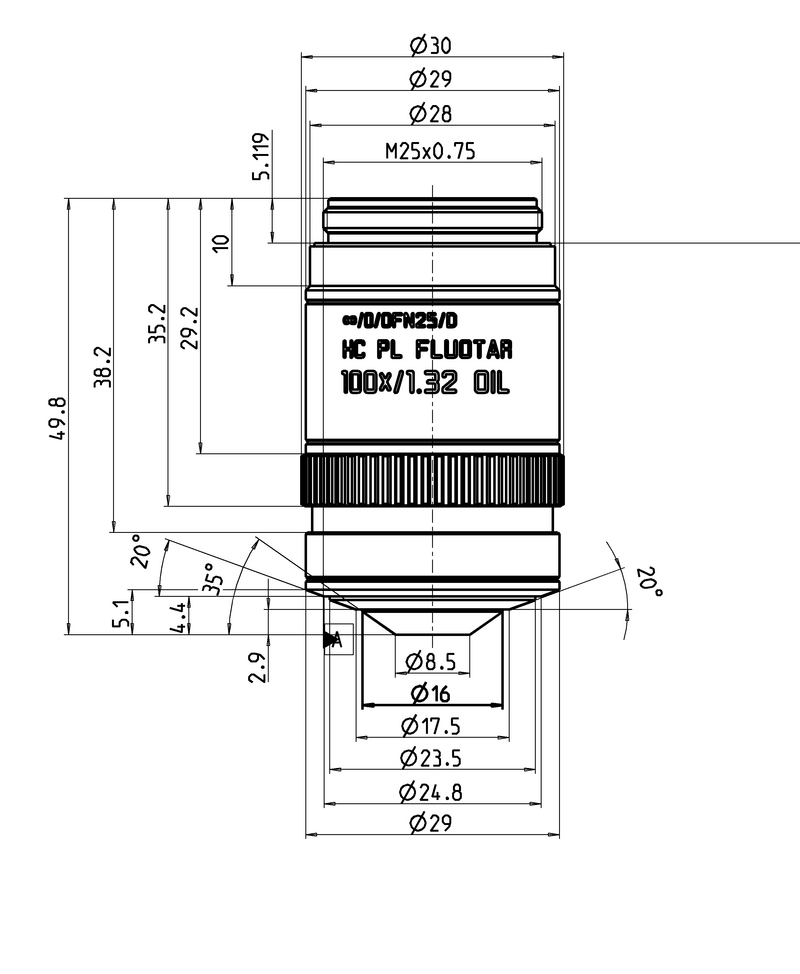

Dimension Sheet

HC PL FLUOTAR 100x/1,32 OIL
