Article Number 11506529
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.4
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 0.8
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques
Transmission UV (365nm)

Figure

HC PL APO 20x/0,80

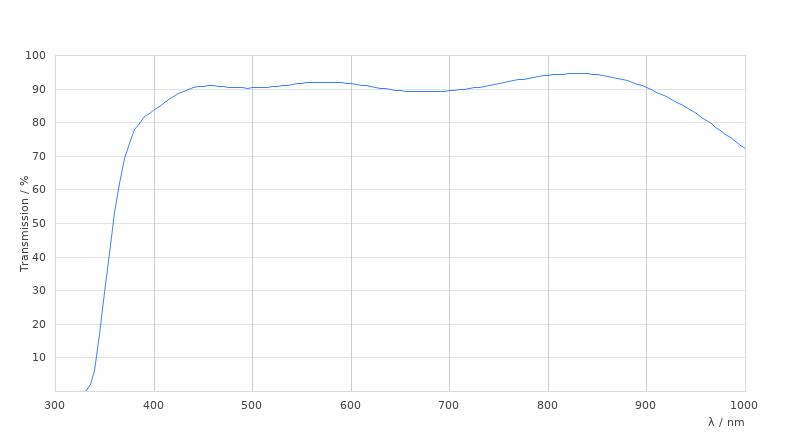

Transmission Curve

HC PL APO 20x/0,80

Dimension Sheet

HC PL APO 20x/0,80
