HC PL FLUOTAR 10x/0,32 PH1

Article Number 11506537
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 11.2
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, FLUO
Numerical Aperture 0.32
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques PH1
Transmission UV (340nm)

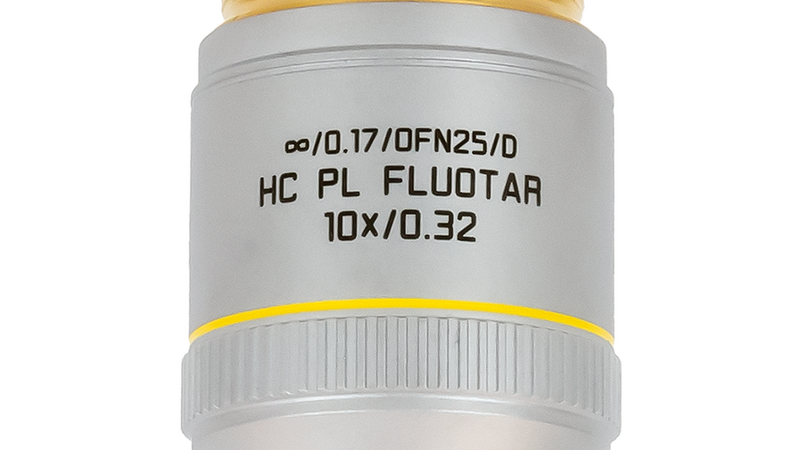

Figure

HC PL FLUOTAR 10x/0,32 PH1

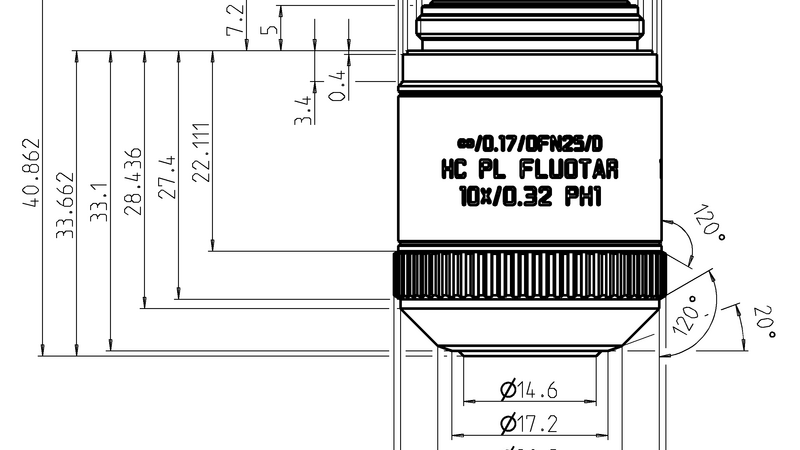

Dimension Sheet

HC PL FLUOTAR 10x/0,32 PH1
