HC IRAPO L 25x/1,00 W motCORR

Article Number 11507704
Correction Ring (CORR) motCORR
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 2.6
Immersion Water
Iris Diaphragm Without
Magnification 25⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 1
Objective Thread M32
Objective Type HC IRAPO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques Electrophysiology, MotCorr, MP
Transmission IR (up to 1300nm)

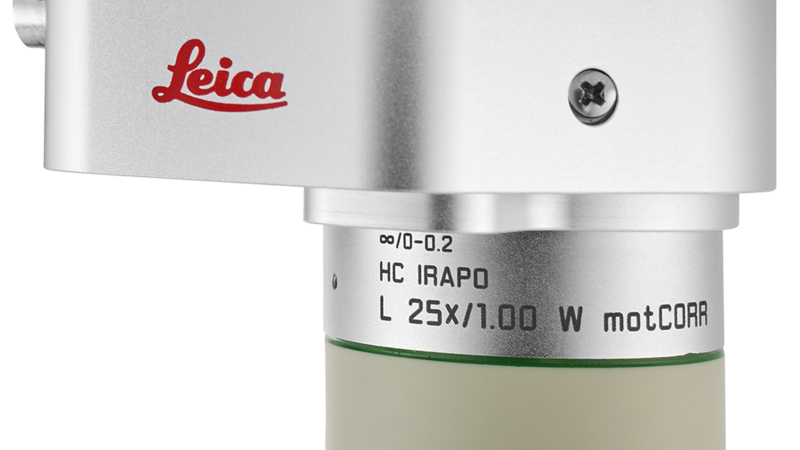

Figure

HC IRAPO L 25x/1,00 W motCORR

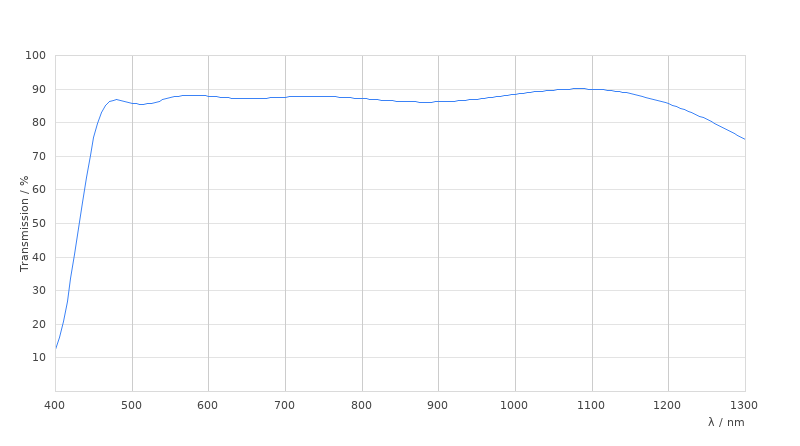

Transmission Curve

HC IRAPO L 25x/1,00 W motCORR

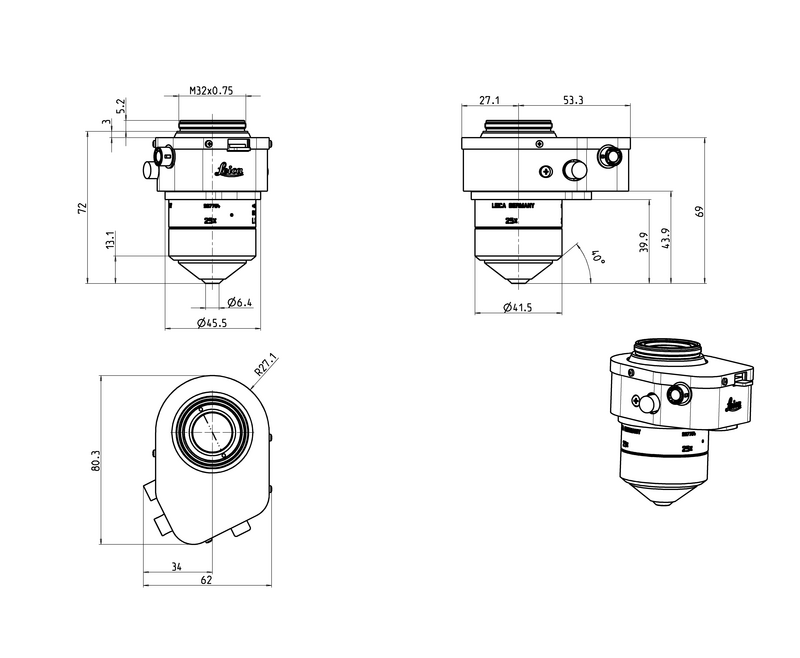

Dimension Sheet

HC IRAPO L 25x/1,00 W motCORR
