HC FLUOTAR L 16x/0,80 IMM motCORR VISIR

Article Number 11507706
Correction Ring (CORR) motCORR
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 8.15
Immersion IMM
Iris Diaphragm Without
Magnification 16⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.8
Objective Thread M32
Objective Type HC FLUOTAR L VISIR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques Electrophysiology, MotCorr, MP
Transmission IR (up to 1300nm)

Figure

HC FLUOTAR L 16x/0,80 IMM motCORR VISIR

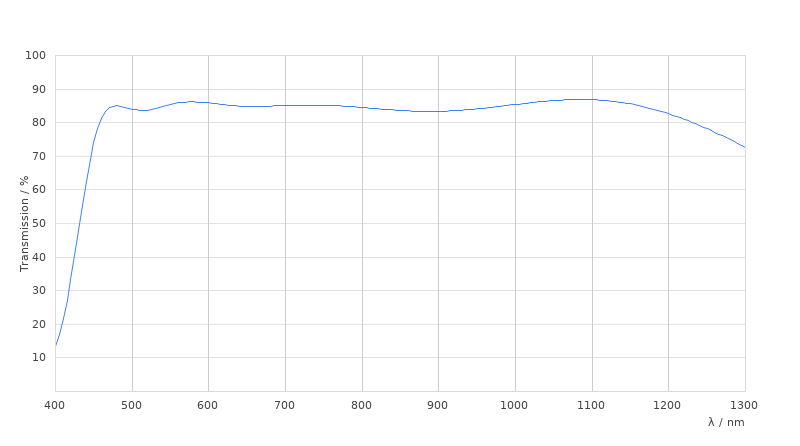

Transmission Curve

HC FLUOTAR L 16x/0,80 IMM motCORR VISIR

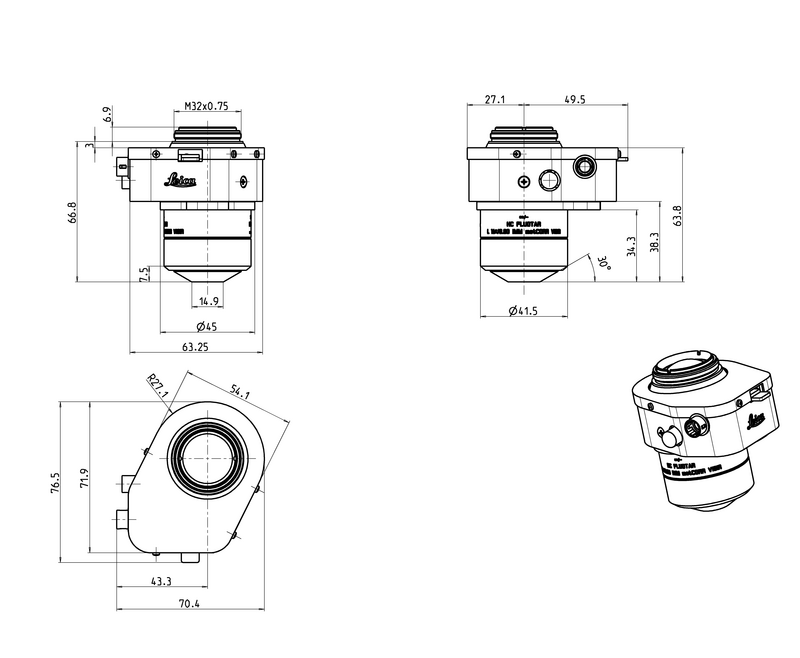

Dimension Sheet

HC FLUOTAR L 16x/0,80 IMM motCORR VISIR
