UVI 10x/0,25 MICRODISSECTION

Article Number 11518147
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism A
Field Number (FN) 22
Free Working Distance (WD in mm) 2.9
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DIC, TL-DF, FLUO
Numerical Aperture 0.25
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques LMD
Transmission UV (340nm)

Figure

UVI 10x/0,25 MICRODISSECTION

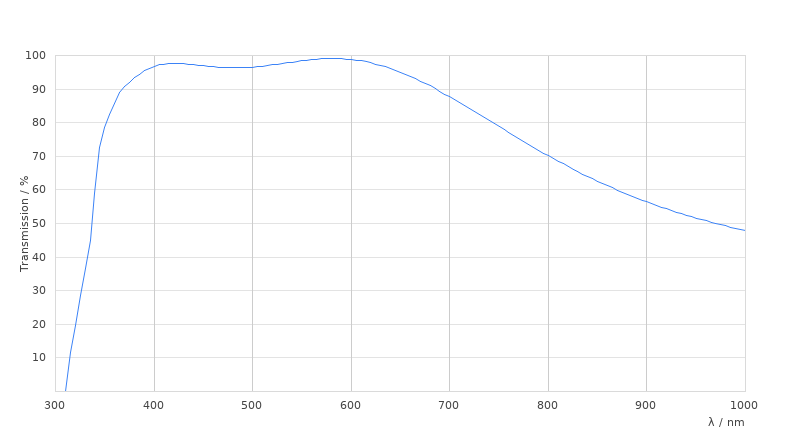

Transmission Curve

UVI 10x/0,25 MICRODISSECTION

Dimension Sheet

UVI 10x/0,25 MICRODISSECTION
