N PLAN 2,5x/0,07 POL

Article Number 11556036
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 11.2
Immersion Dry
Iris Diaphragm Without
Magnification 2.5⨉
Contrasting Methodes TL-BF, TL-P, TL-POL, IL-BF, IL-P, IL-POL, FLUO
Numerical Aperture 0.07
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, POL
Transmission UV (365nm)

Figure

N PLAN 2,5x/0,07 POL

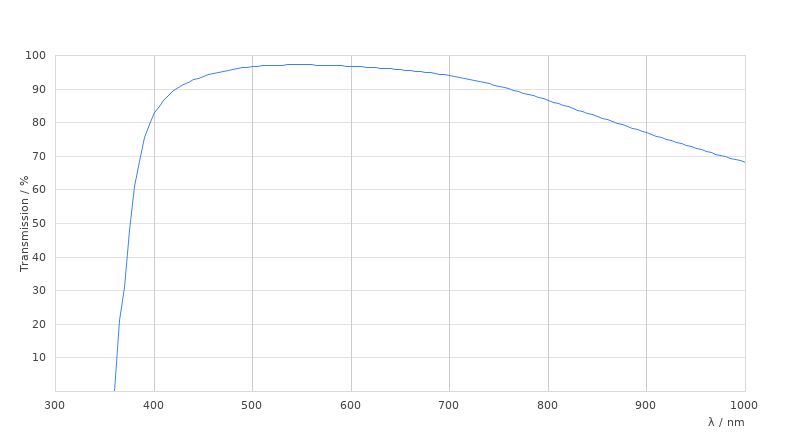

Transmission Curve

N PLAN 2,5x/0,07 POL

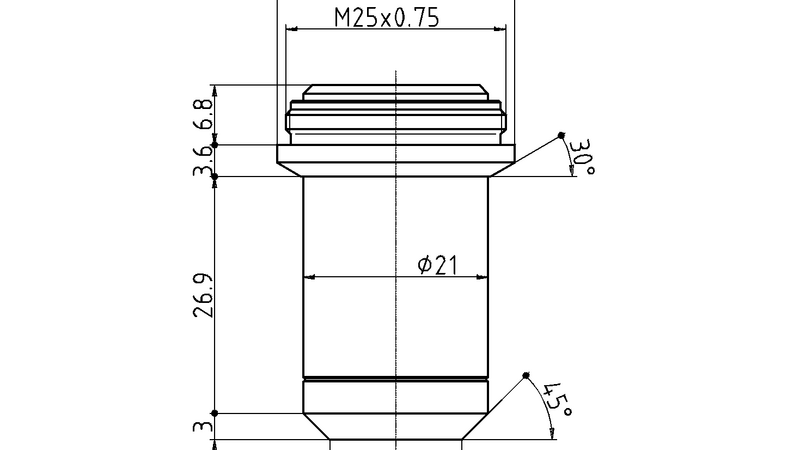

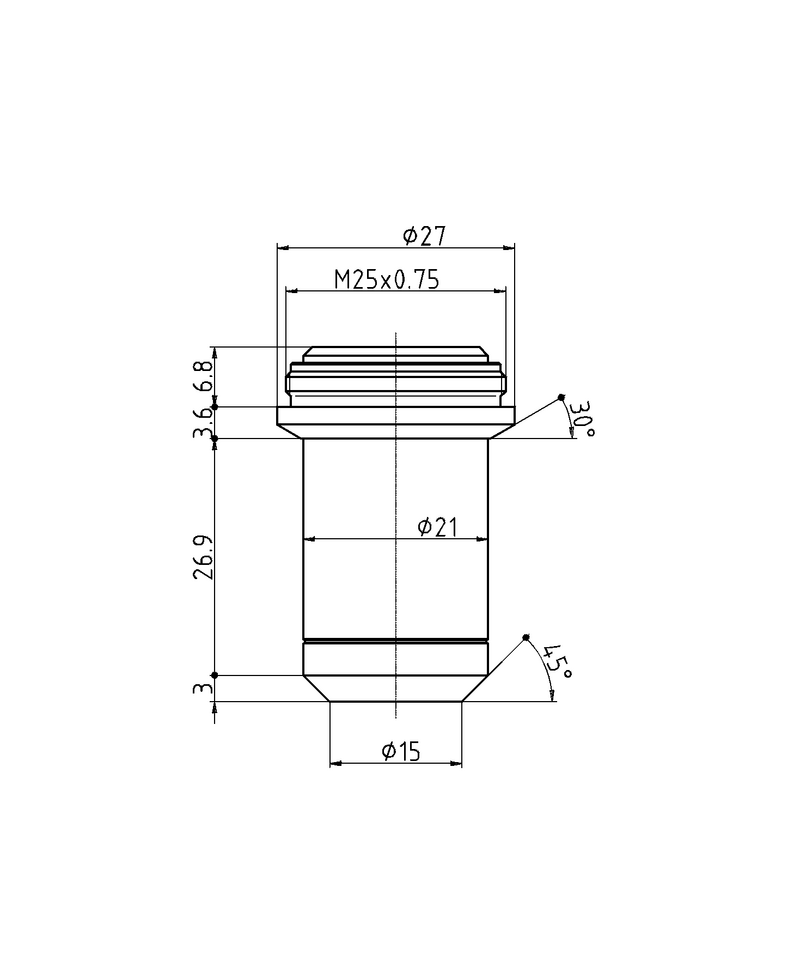

Dimension Sheet

N PLAN 2,5x/0,07 POL
