HI PLAN 10x/0,25 POL

Article Number 11556061
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 12
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-POL, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.25
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques POL
Transmission -

Figure

HI PLAN 10x/0,25 POL

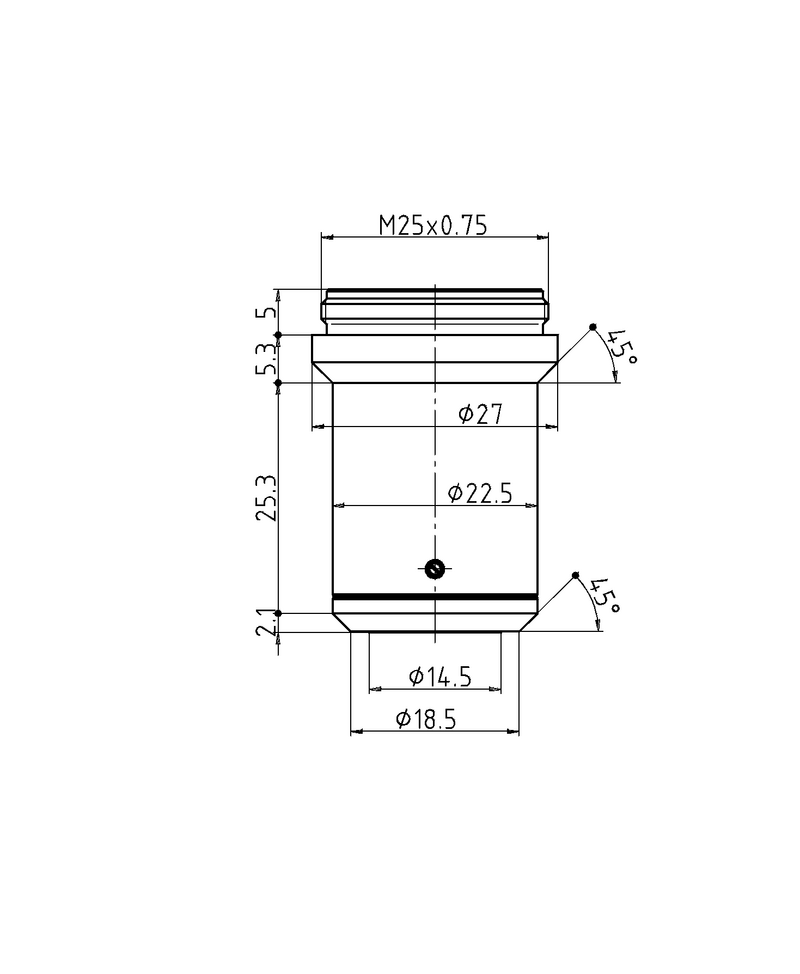

Dimension Sheet

HI PLAN 10x/0,25 POL
