N PLAN EPI 50x/0,75 POL

Article Number 11556073
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 0.5
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-P, TL-POL, TL-DF, IL-BF, IL-DIC, IL-P, IL-POL, FLUO
Numerical Aperture 0.75
Objective Thread M25
Objective Type N PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, POL
Transmission UV (365nm)

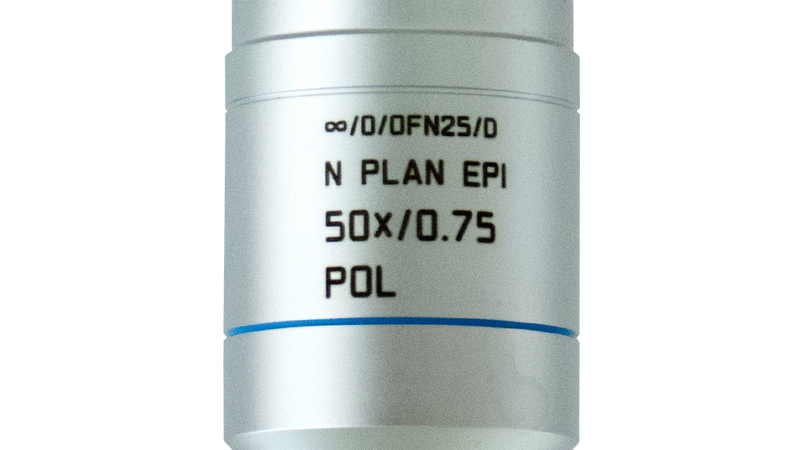

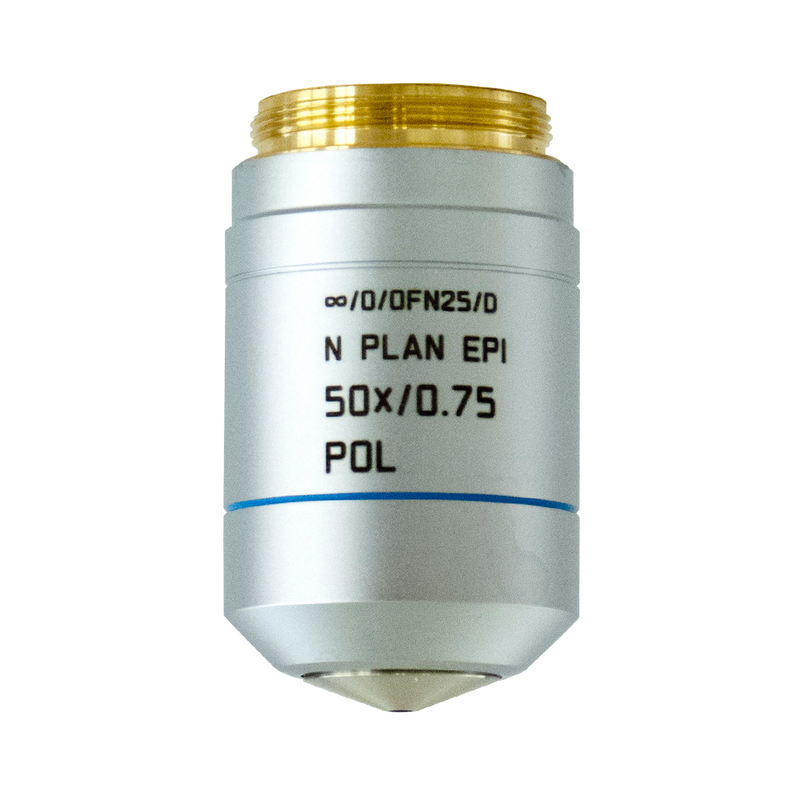

Figure

N PLAN EPI 50x/0,75 POL

Transmission Curve

N PLAN EPI 50x/0,75 POL

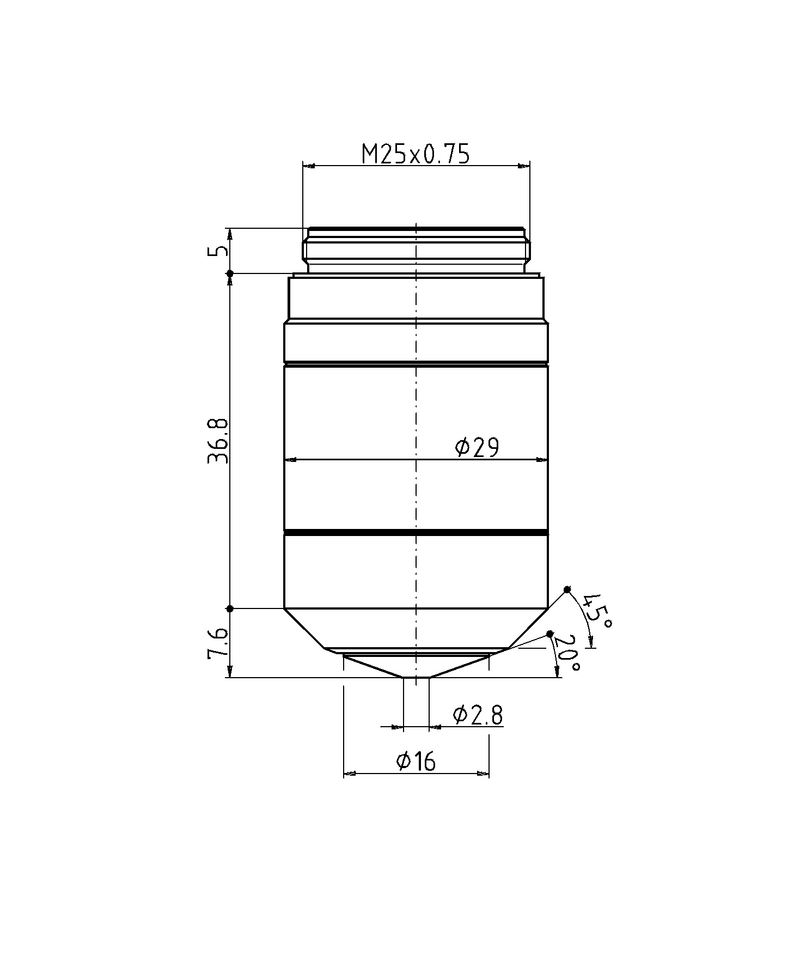

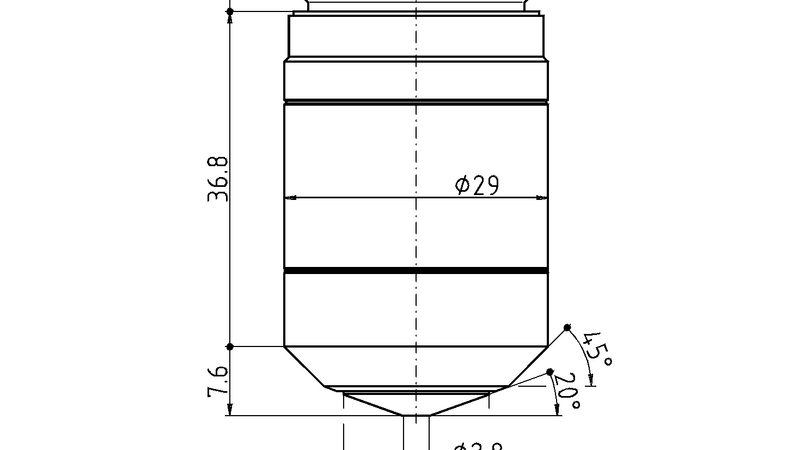

Dimension Sheet

N PLAN EPI 50x/0,75 POL
