N PLAN EPI 20x/0,40 OIL POL XLR

Article Number 11556076
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 22
Free Working Distance (WD in mm) 0.23
Immersion Oil
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-POL, TL-DF, IL-BF, IL-DIC, IL-P, IL-POL, FLUO
Numerical Aperture 0.4
Objective Thread M25
Objective Type N PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, POL
Transmission -

Figure

N PLAN EPI 20x/0,40 OIL POL XLR

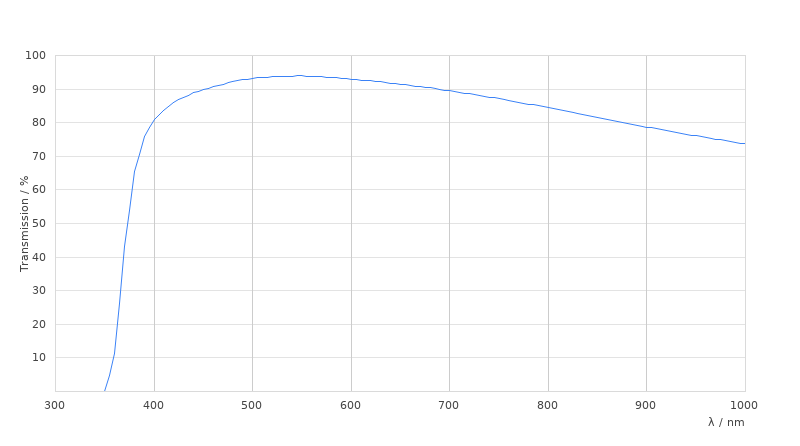

Transmission Curve

N PLAN EPI 20x/0,40 OIL POL XLR

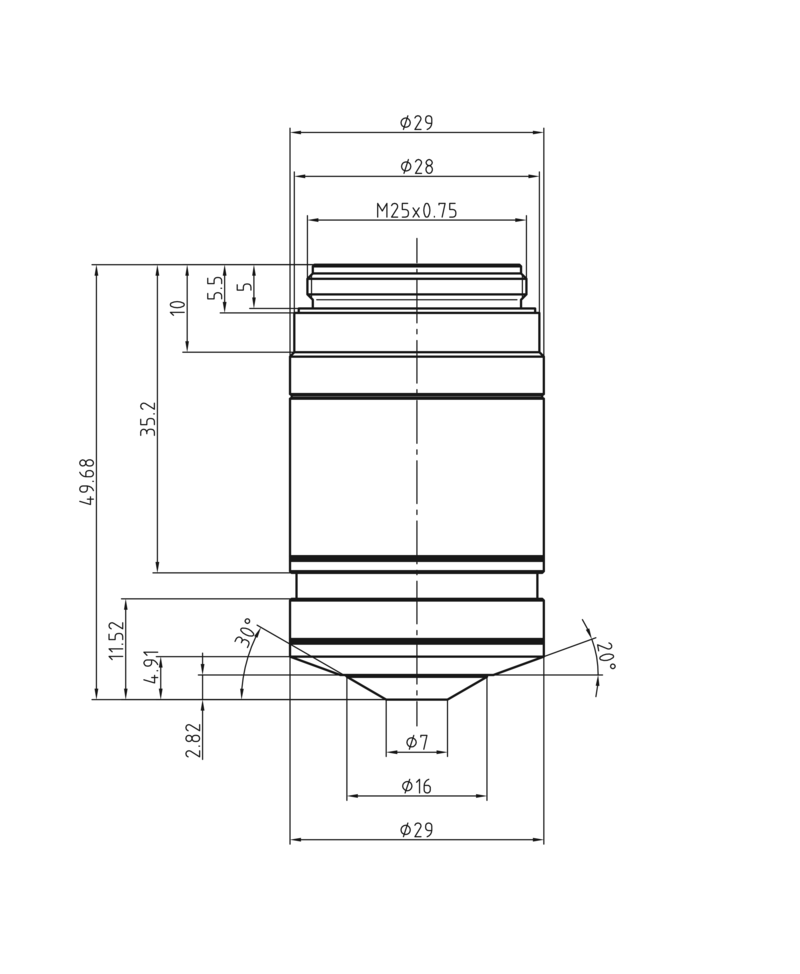

Dimension Sheet

N PLAN EPI 20x/0,40 OIL POL XLR
