HC PL FLUOTAR 50x/0,80 POL

Article Number 11556078
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 1.04
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-POL, IL-BF, IL-DIC, IL-P, IL-POL, FLUO
Numerical Aperture 0.8
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, POL
Transmission UV (365nm)

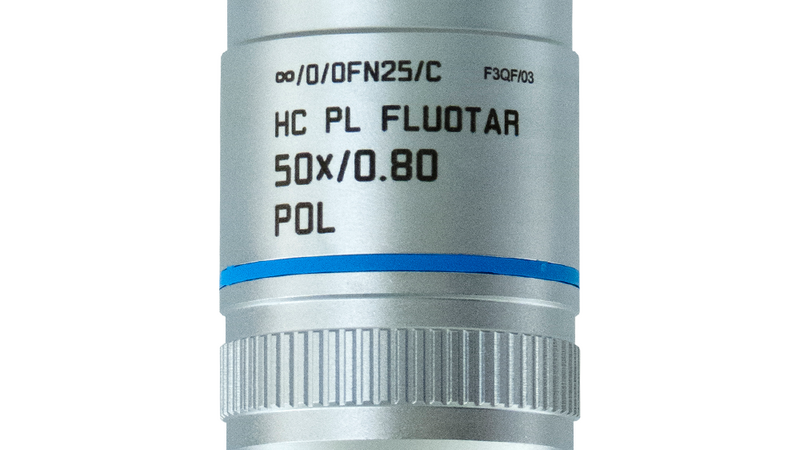

Figure

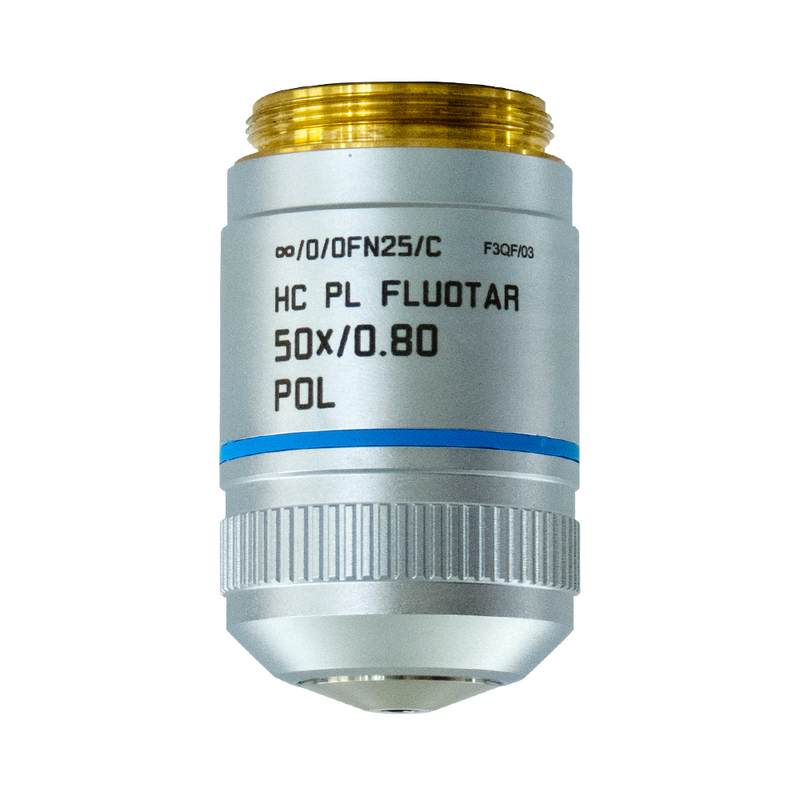

HC PL FLUOTAR 50x/0,80 POL

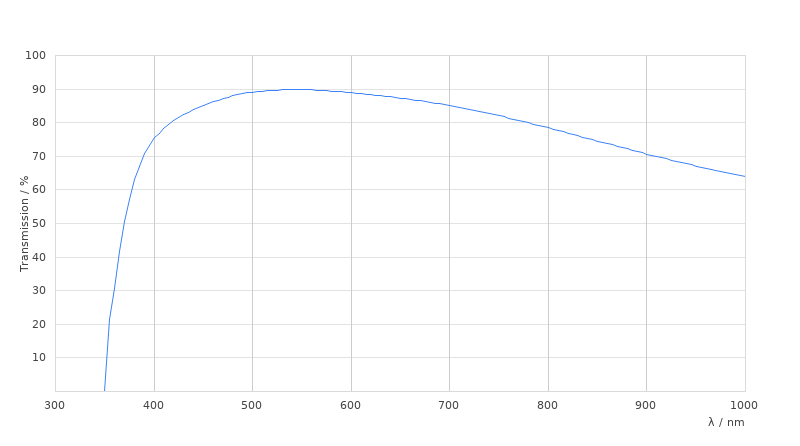

Transmission Curve

HC PL FLUOTAR 50x/0,80 POL
