N PLAN 40x/0,65 POL

Article Number 11556084
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.36
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-POL, TL-DF, FLUO
Numerical Aperture 0.65
Objective Thread M25
Objective Type N PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques POL
Transmission -

Figure

N PLAN 40x/0,65 POL

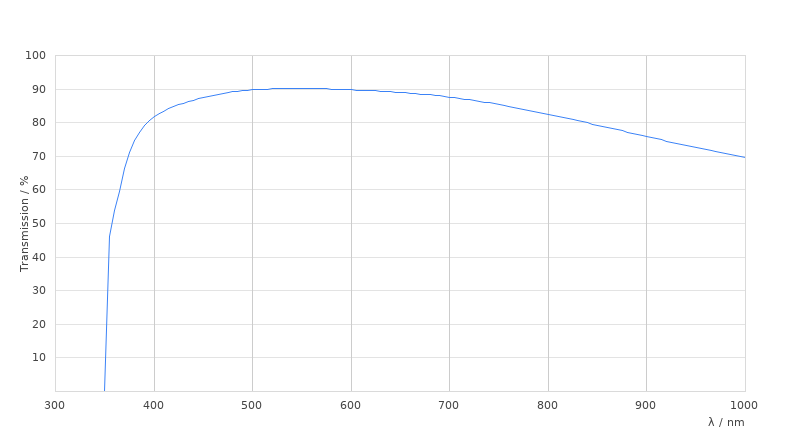

Transmission Curve

N PLAN 40x/0,65 POL

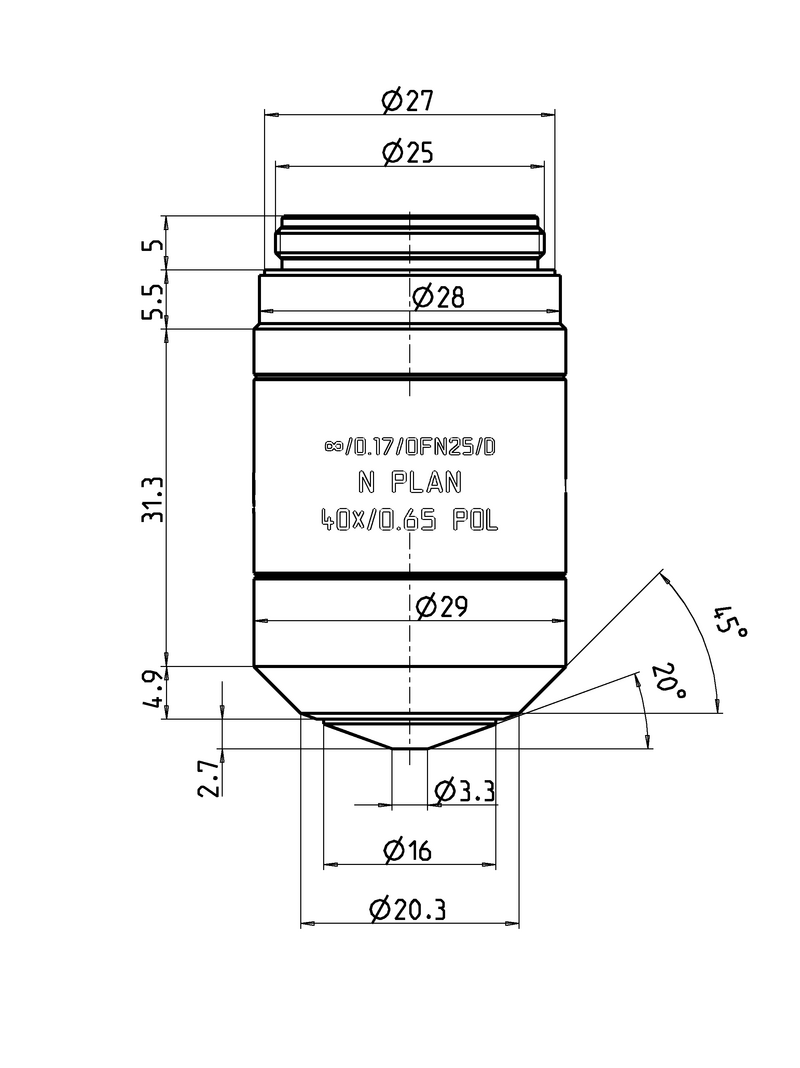

Dimension Sheet

N PLAN 40x/0,65 POL
