Microscope Objective EPI 50x/0.85 OIL POL XLR
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11556090 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 16 |
| Free Working Distance (WD in mm) | 0.27 |
| Immersion | Oil |
| Iris Diaphragm | Without |
| Magnification | 50⨉ |
| Contrasting Methodes | TL-BF, TL-POL, IL-BF, IL-POL, FLUO |
| Numerical Aperture | 0.85 |
| Objective Thread | M25 |
| Objective Type | N |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | IL, POL |

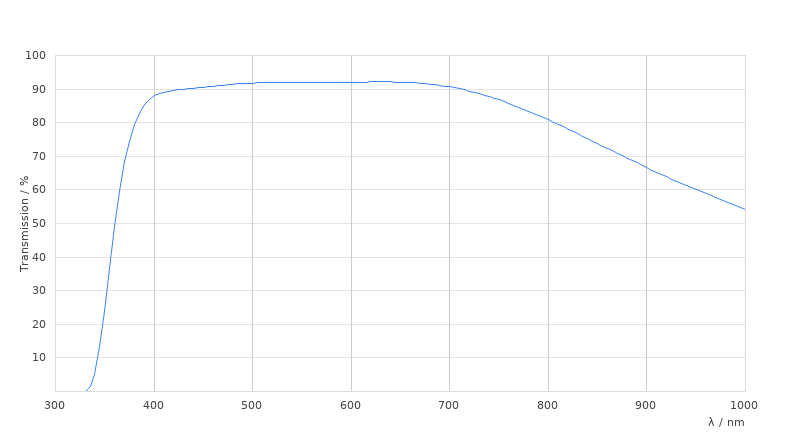

| Transmission | UV (365nm) |
