Article Number 11566040
Correction Ring (CORR) -
Coverglass 1.8 Quartz
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 7.1
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-P, TL-DF, FLUO
Numerical Aperture 0.5
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission UV (365nm)

Figure

N PLAN H 50x/0,50

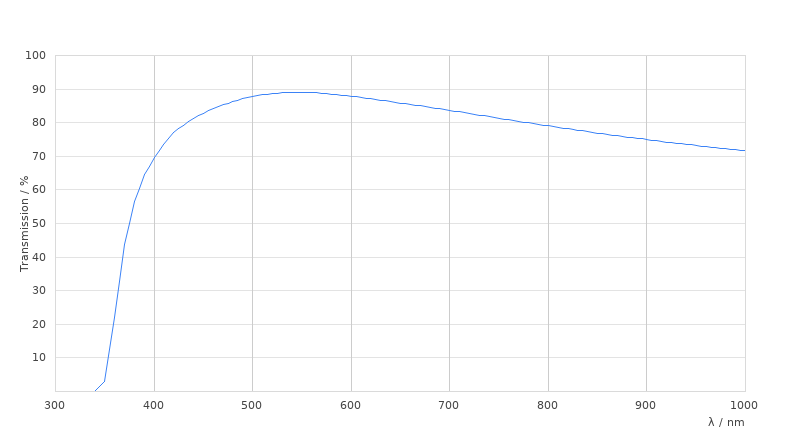

Transmission Curve

N PLAN H 50x/0,50

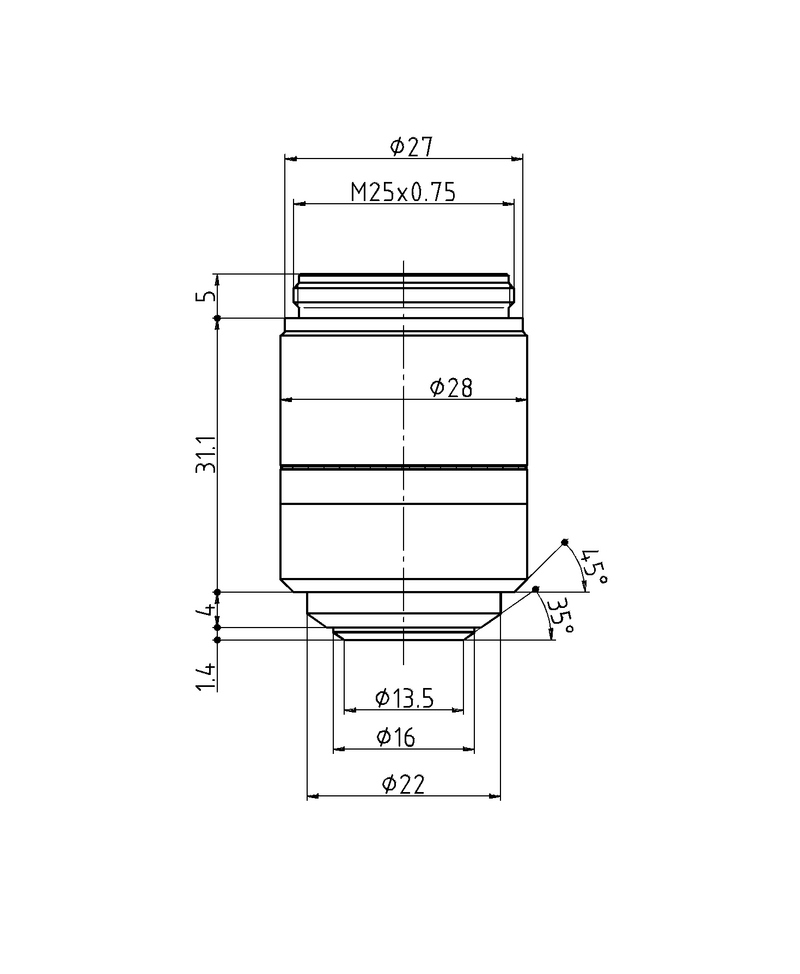

Dimension Sheet

N PLAN H 50x/0,50
