Article Number 11566056
Correction Ring (CORR) -
Coverglass 1.8 Quartz
Exit Pupil Position/DIC prism C
Field Number (FN) 22
Free Working Distance (WD in mm) 10.6
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.4
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission UV (365nm)

Figure

N PLAN H 20x/0,40

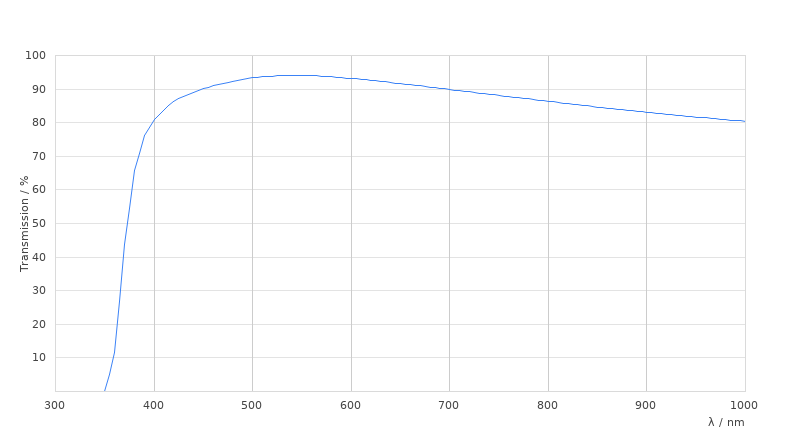

Transmission Curve

N PLAN H 20x/0,40

Dimension Sheet

N PLAN H 20x/0,40
