HC PL APO 100x/0,95

Article Number 11566065
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.16
Immersion Dry
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-DIC, IL-BF, IL-DIC, FLUO
Numerical Aperture 0.95
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques IL
Transmission UV (365nm)

Figure

HC PL APO 100x/0,95

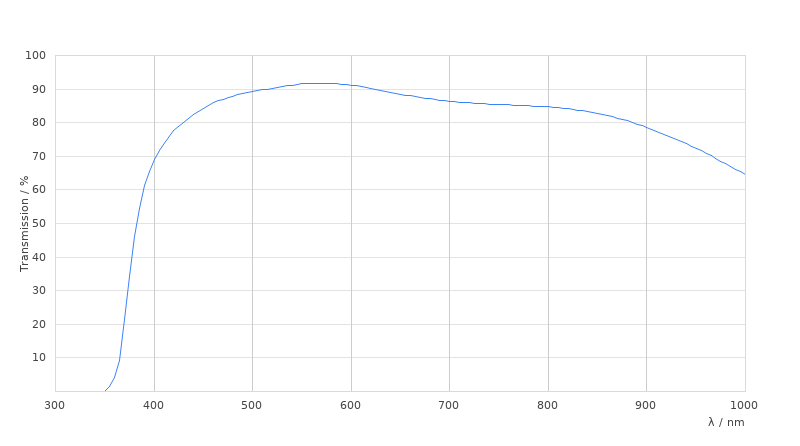

Transmission Curve

HC PL APO 100x/0,95

Dimension Sheet

HC PL APO 100x/0,95
