N PLAN EPI 100x/0,85 BD

Article Number 11566075
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 0.33
Immersion Dry
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-P, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.85
Objective Thread M32
Objective Type N PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL
Transmission -

Figure

N PLAN EPI 100x/0,85 BD

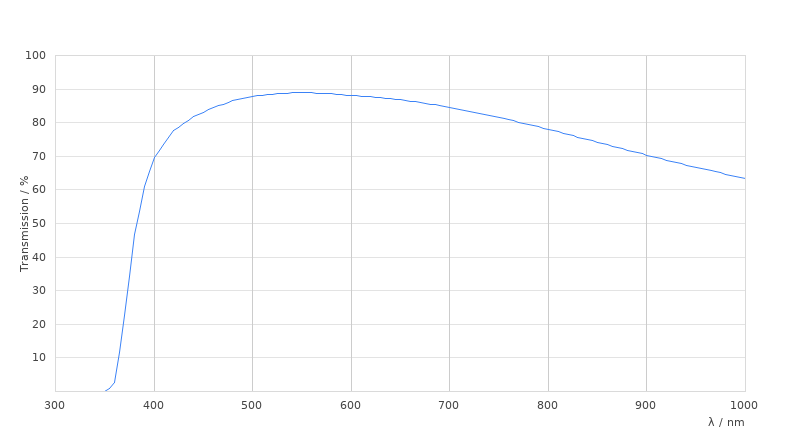

Transmission Curve

N PLAN EPI 100x/0,85 BD

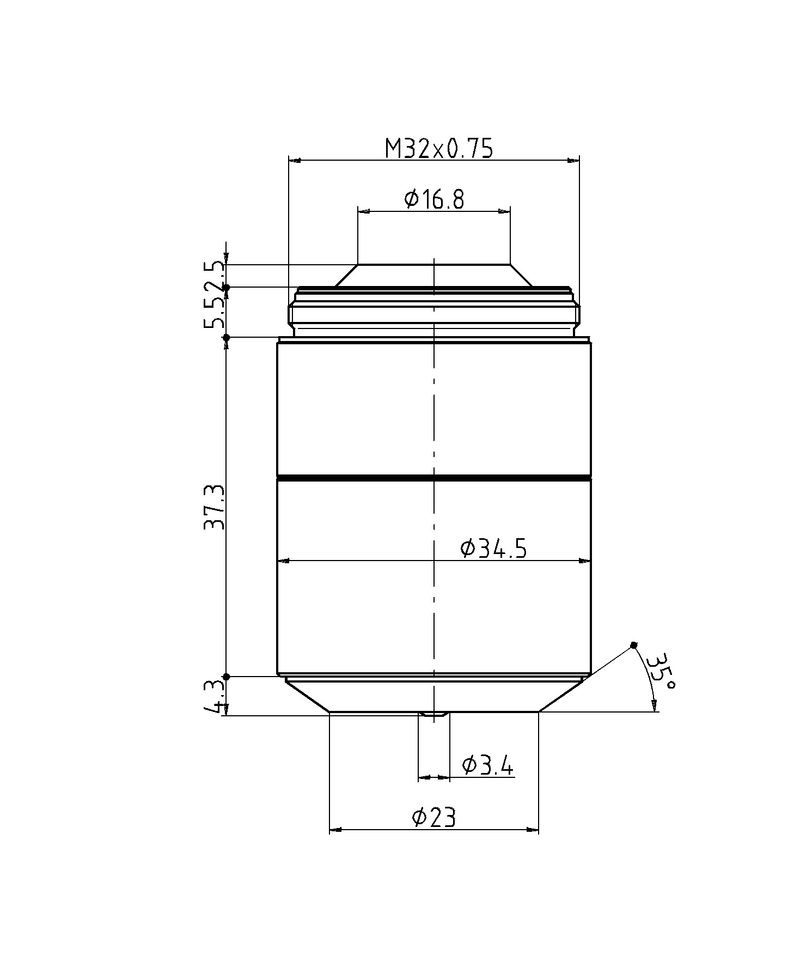

Dimension Sheet

N PLAN EPI 100x/0,85 BD
