N PLAN EPI 5x/0,12 BD

Article Number 11566077
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism B
Field Number (FN) 22
Free Working Distance (WD in mm) 14.0
Immersion Dry
Iris Diaphragm Without
Magnification 5⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.12
Objective Thread M32
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL
Transmission -

Figure

N PLAN EPI 5x/0,12 BD

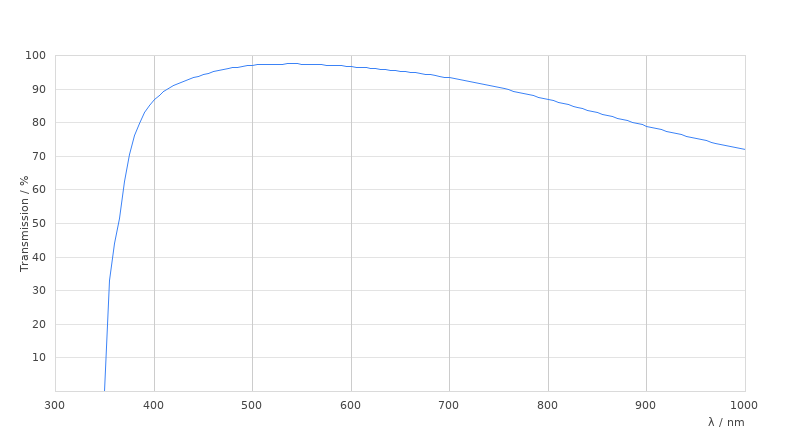

Transmission Curve

N PLAN EPI 5x/0,12 BD
