HC PL FLUOTAR 100x/0,90

Article Number 11566202
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 1.0
Immersion Dry
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-P, IL-BF, IL-DIC, IL-P, FLUO
Numerical Aperture 0.9
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL
Transmission -

Figure

HC PL FLUOTAR 100x/0,90

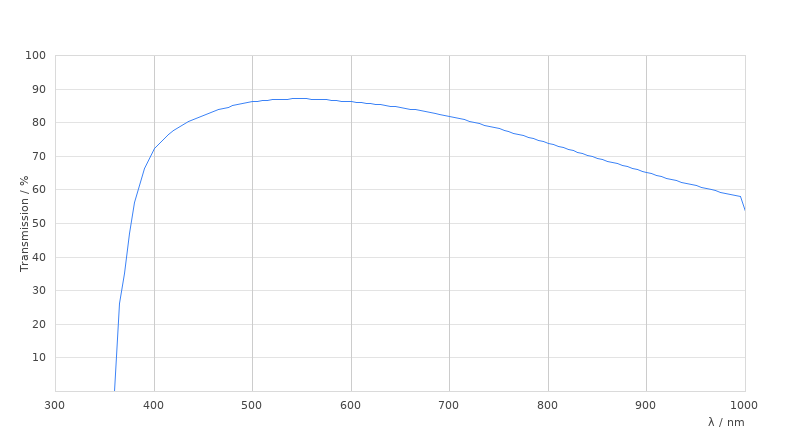

Transmission Curve

HC PL FLUOTAR 100x/0,90

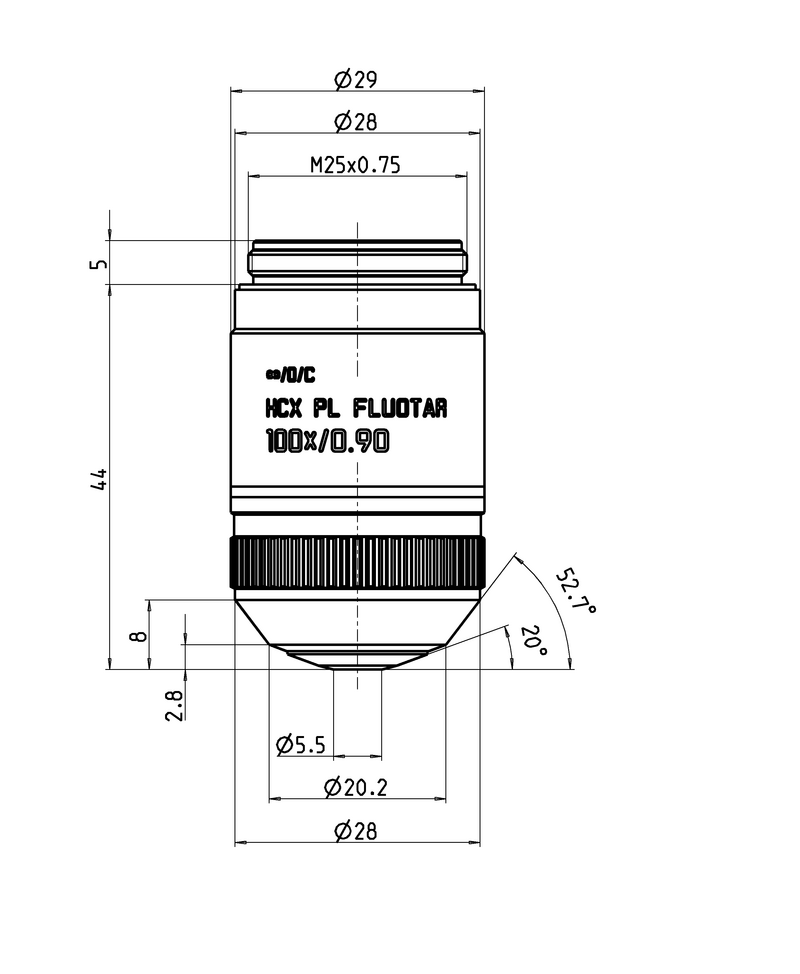

Dimension Sheet

HC PL FLUOTAR 100x/0,90
