M PL APO MACRO 0.4x/0.014-0.003

Article Number 11581046
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 60
Immersion Dry
Iris Diaphragm 0.003
Magnification 0.4⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.014
Objective Thread M32
Objective Type PLAN APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques FSC

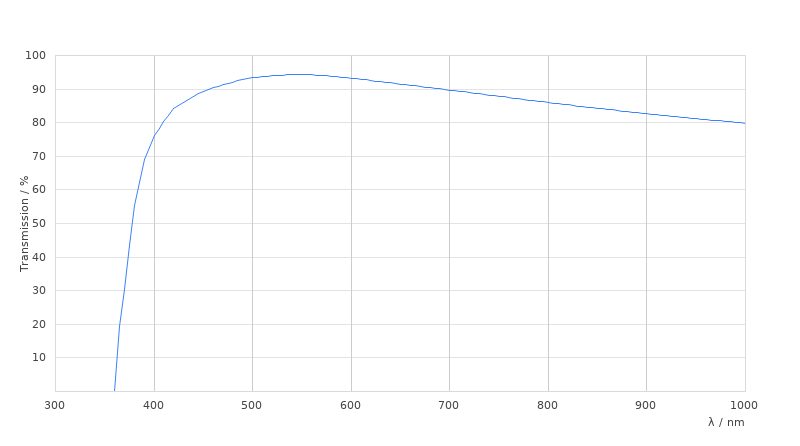

Transmission UV (365nm)

Figure

M PL APO MACRO 0.4x/0.014-0.003
