M PL APO MACRO 2x/0.07-0.01

Article Number 11581048
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 60
Immersion Dry
Iris Diaphragm 0.01
Magnification 2⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.07
Objective Thread M32
Objective Type PLAN APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques FSC

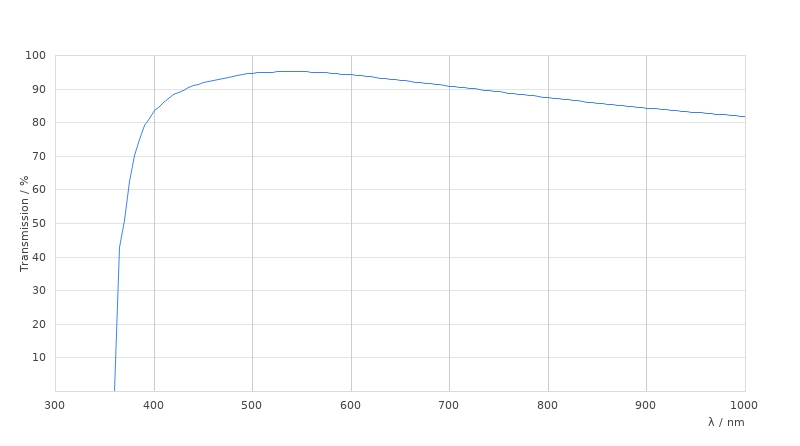

Transmission UV (340nm)

Figure

M PL APO MACRO 2x/0.07-0.01
