M PL APO MACRO 4x/0.14-0.03

Article Number 11581049
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 60
Immersion Dry
Iris Diaphragm 0.03
Magnification 4⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.14
Objective Thread M32
Objective Type PLAN APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques FSC

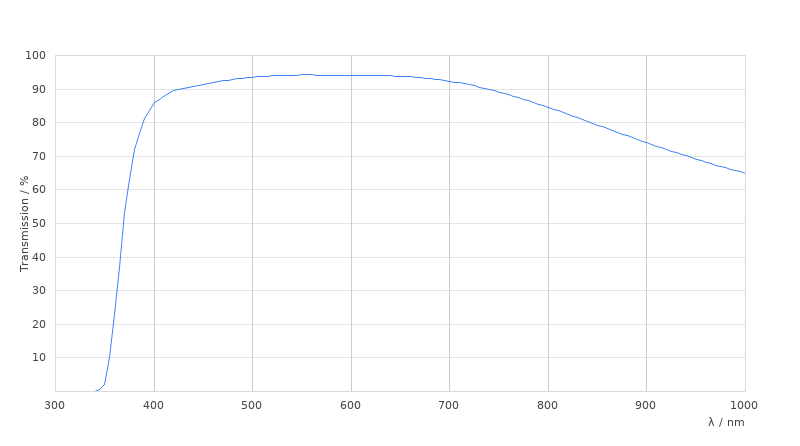

Transmission UV (365nm)

Figure

M PL APO MACRO 4x/0.14-0.03
