Article Number 11888434
Correction Ring (CORR) CORR
Coverglass With
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.07
Immersion Oil
Iris Diaphragm Without
Magnification 160⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.43
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques GSD
Transmission UV (365nm)

Figure

Optik Kit GSD 160x

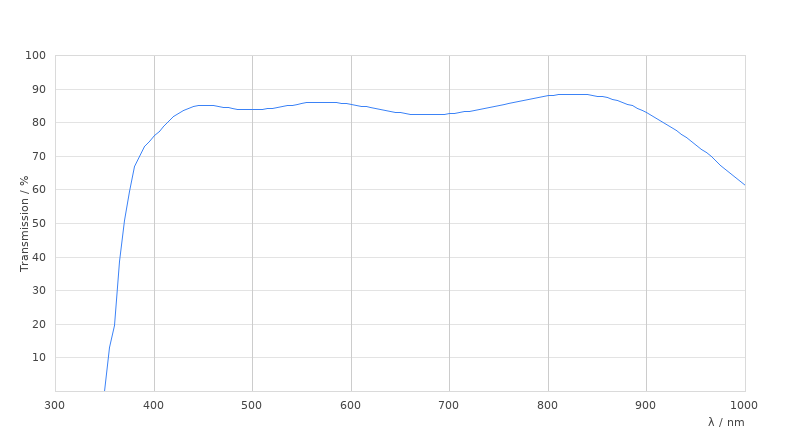

Transmission Curve

Optik Kit GSD 160x
