Microscope Objective N PLAN 20x/0,40 PH1

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
N PLAN 20x/0,40 PH1
N PLAN 20x/0,40 PH1
N PLAN 20x/0,40 PH1
N PLAN 20x/0,40 PH1
N PLAN 20x/0,40 PH1
N PLAN 20x/0,40 PH1

Specifiche tecniche

Numero articolo 11506098
Anello di correzione (CORR) -
VETRINO COPRIOGGETTO Con
Esci dalla posizione della pupilla / prisma DIC -
Campo visivo (FN) 22
Distanza libera di lavoro (WD in mm) 0.39
Immersione A Secco
Diaframma iris Senza
Ingrandimento 20⨉
METODI DI CONTRASTO TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, FLUO
Apertura numerica 0.4
FILETTATURA OBIETTIVO M25
Tipo di obiettivo N PLAN
Con inserimento a molla No
Adatto per AFC (Controllo di messa a fuoco adattativo) -
Tecniche PH1

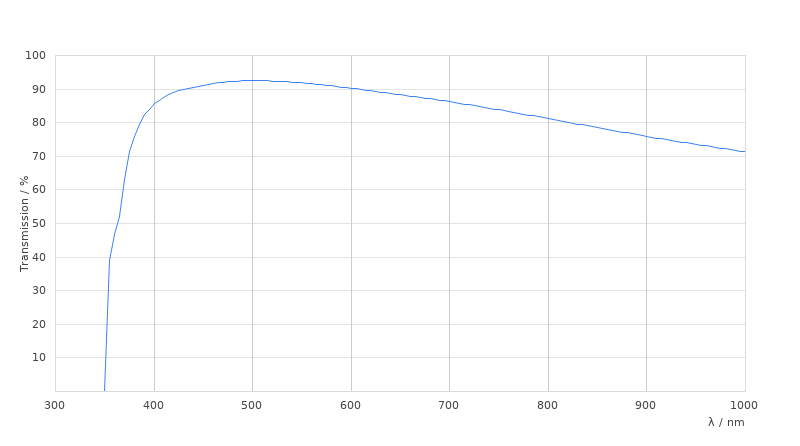

Trasmissione UV (340nm)
