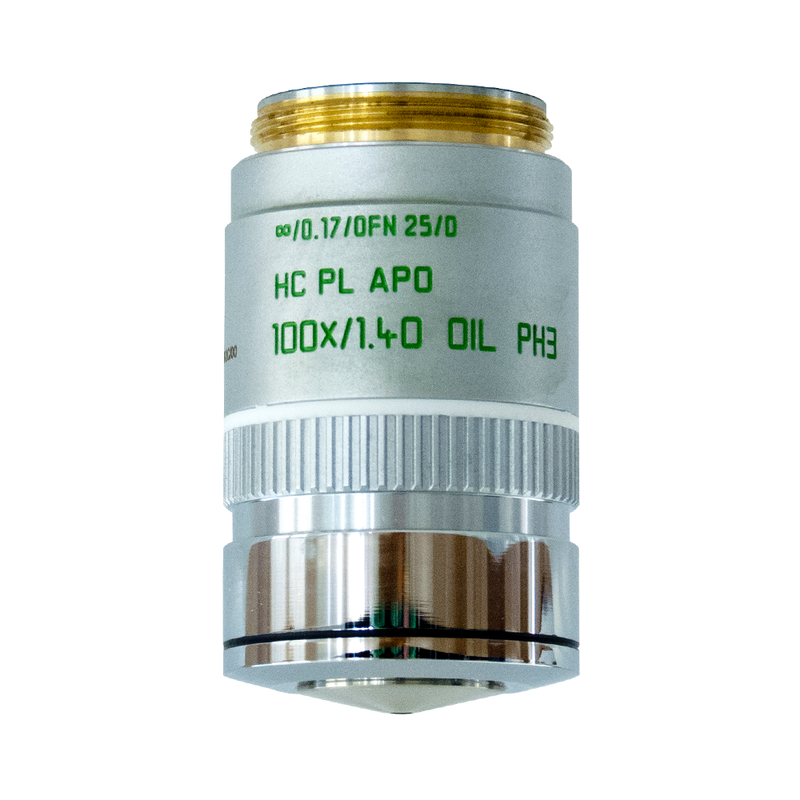

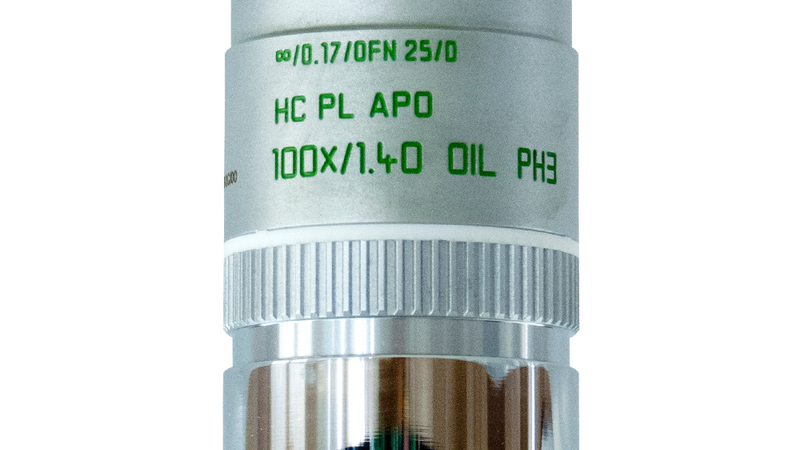

Microscope Objective HC PL APO 100x/1,40 OIL PH3
Product No. 11506381
Objective HC PL APO 100x/1,40 OIL PH3 has a magnification of 100X and a numerical aperture of 1.4. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.09mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Product Number | 11506381 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Avec |
| Sortie de la position de la pupille / du prisme DIC | D |
| Field Number (FN) | 25 |
| Distance de travail libre (WD en mm) | 0.09 |
| Immersion | Huile |
| Diaphragme d'iris | Sans |
| Grossissement | 100⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-DIC, TL-PH, FLUO |
| Ouverture numérique | 1.4 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | PLAN APO |
| RESSORT CHARGÉ | Oui |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | Compatible AFC |
| Techniques | PH3 |

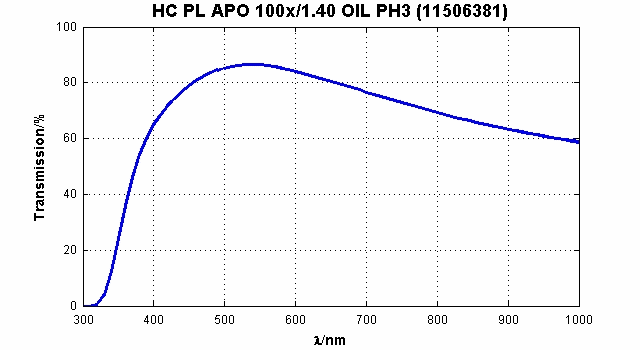

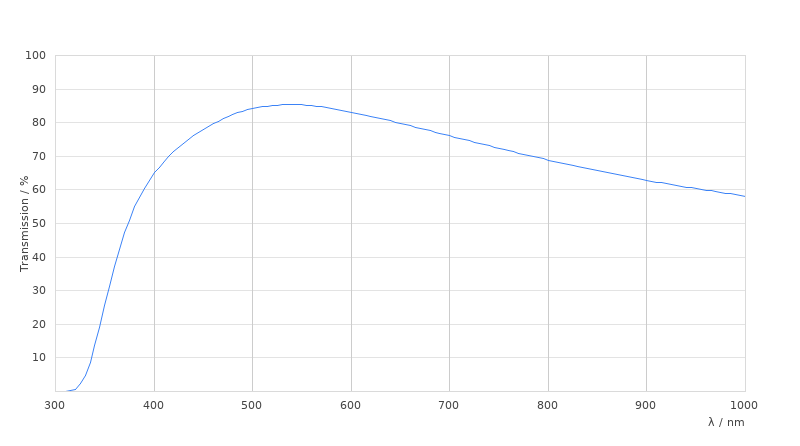

| Transmission | UV (340nm) |
