Microscope Objective HC PL APO 63x1,40 OIL CS2

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL APO 63x1,40  OIL CS2
HC PL APO 63x1,40  OIL CS2
HC PL APO 63x1,40  OIL CS2
HC PL APO 63x1,40  OIL CS2
HC PL APO 63x1,40  OIL CS2
HC PL APO 63x1,40  OIL CS2

Caractéristiques techniques

Numéro d'article 11506535
BAGUE DE CORRECTION (CORR) -
Lamelle couvre-objet Avec
Sortie de la position de la pupille / du prisme DIC E
Champ de vision (FN) 22
Distance de travail libre (WD en mm) 0.14
Immersion Huile
Diaphragme d'iris Sans
Grossissement 63⨉
MÉTHODES DE CONTRASTE TL-BF, TL-DIC, TL-IMC, FLUO
Ouverture numérique 1.4
FILETAGE DE L’OBJECTIF M25
Type d'objectif PLAN APO
RESSORT CHARGÉ Oui
ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) Compatible AFC
Techniques CS2

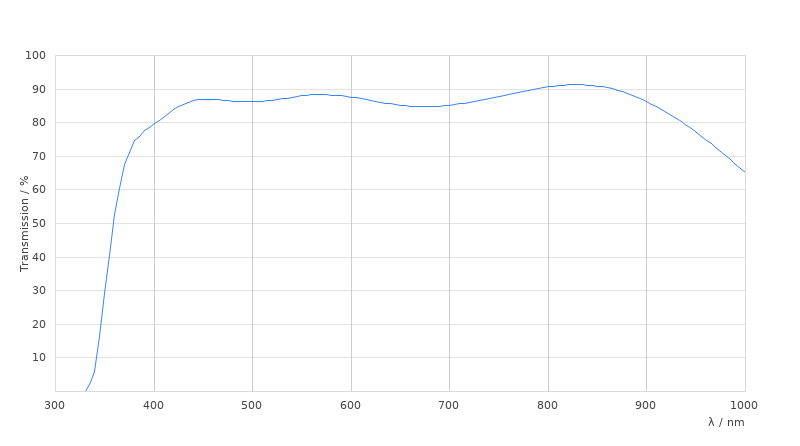

Transmission UV (365nm)
