Microscope Objective UVI 2,5x/0,07 MICRODISSECTION
Product No. 11518148
Objective UVI 2,5x/0,07 MICRODISSECTION has a magnification of 2.5X and a numerical aperture of 0.07. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 11.7mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Product Number | 11518148 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Avec & sans |
| Sortie de la position de la pupille / du prisme DIC | - |
| Field Number (FN) | 22 |
| Distance de travail libre (WD en mm) | 11.7 |
| Immersion | Sec |
| Diaphragme d'iris | Sans |
| Grossissement | 2.5⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-DF, FLUO |
| Ouverture numérique | 0.07 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | HI PLAN |
| RESSORT CHARGÉ | Non |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | - |
| Techniques | LMD |

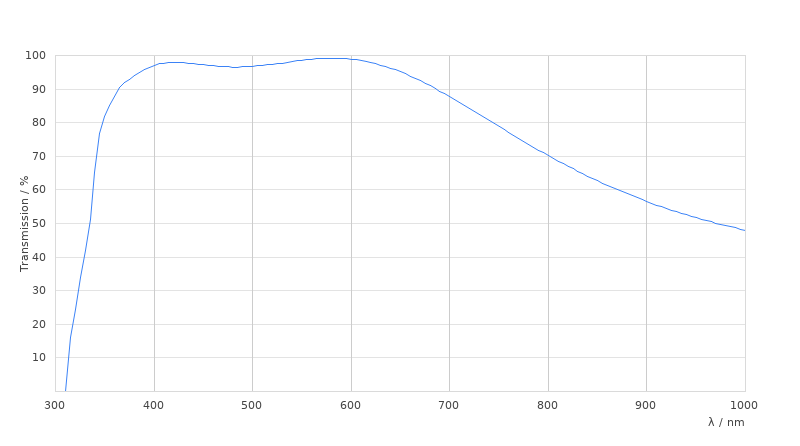

| Transmission | UV (340nm) |
