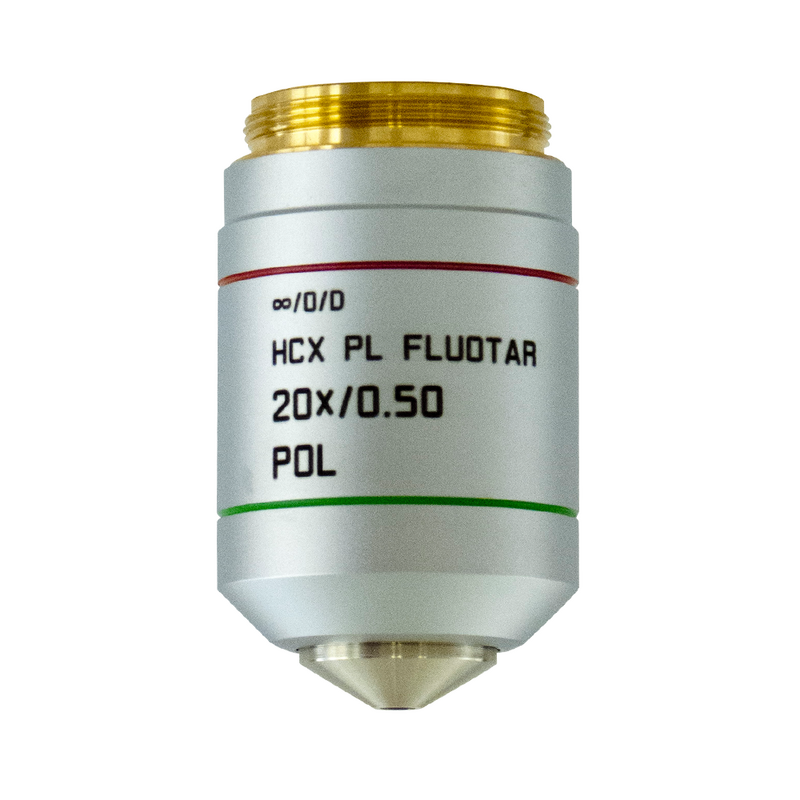

Microscope Objective HC PL FLUOTAR 20x/0,50 POL
Product No. 11556068
Objective HC PL FLUOTAR 20x/0,50 POL has a magnification of 20X and a numerical aperture of 0.5mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 1.27mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Numéro d'article | 11556068 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Sans |
| Sortie de la position de la pupille / du prisme DIC | D |
| Field Number (FN) | 25 |
| Distance de travail libre (WD en mm) | 1.27 |
| Immersion | Sec |
| Diaphragme d'iris | Sans |
| Grossissement | 20⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-DIC, TL-P, TL-POL, TL-DF, IL-BF, IL-DIC, IL-P, IL-POL, FLUO |
| Ouverture numérique | 0.5 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | PL FLUOTAR |
| RESSORT CHARGÉ | Non |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | - |
| Techniques | IL, POL |
| Transmission | UV (340nm) |
