Microscope Objective HC PL FLUOTAR 1,25x/0,04 R
Product No. 11566045
Objective HC PL FLUOTAR 1,25x/0,04 R has a magnification of 1.25X and a numerical aperture of 0.04mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 1.6mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Numéro d'article | 11566045 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Sans |
| Sortie de la position de la pupille / du prisme DIC | - |
| Field Number (FN) | 25 |
| Distance de travail libre (WD en mm) | 01. Jun |
| Immersion | Sec |
| Diaphragme d'iris | Sans |
| Grossissement | 1.25⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-P, IL-BF, IL-P, FLUO |
| Ouverture numérique | 0.04 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | PL FLUOTAR |
| RESSORT CHARGÉ | Non |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | - |
| Techniques | IL |

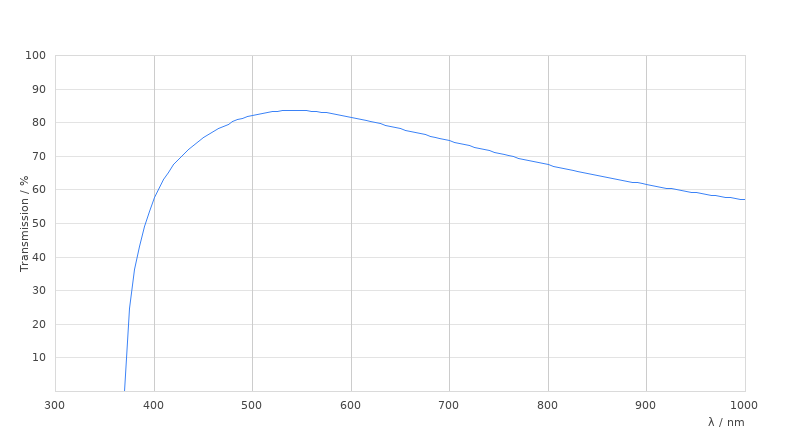

| Transmission | UV (365nm) |
