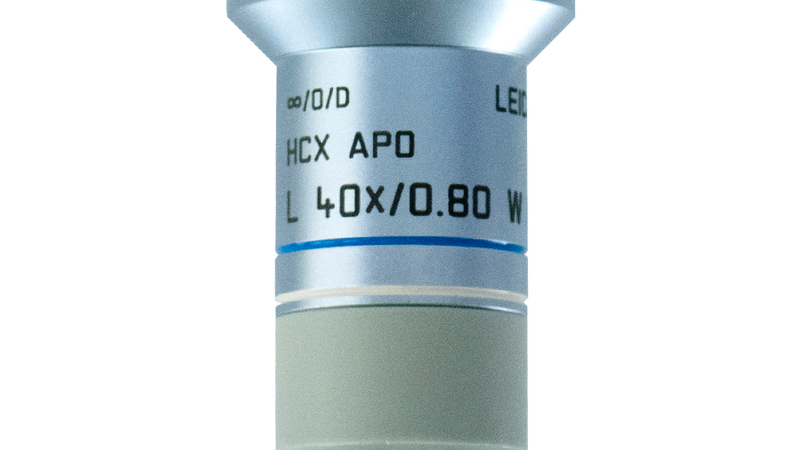

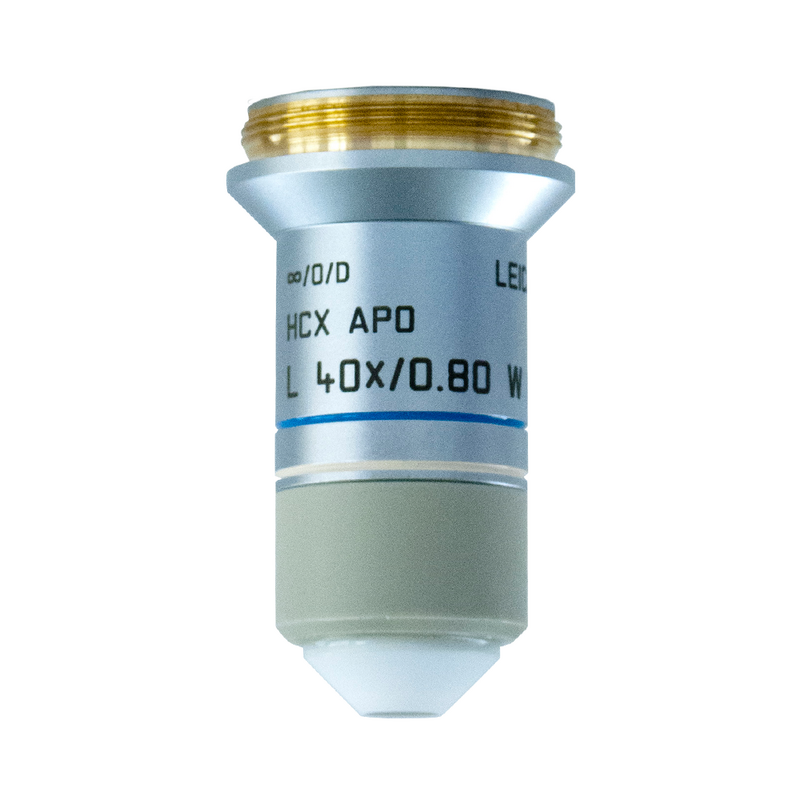

Microscope Objective HC APO L 40x/0,80 W U-V-I
Product No. 11506155
Objective HC APO L 40x/0,80 W U-V-I has a magnification of 40X and a numerical aperture of 0.8. For use in water immersion material environment and attached with an objective thread of M25 having a free working distance of 3.3mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Product Number | 11506155 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Sans |
| Sortie de la position de la pupille / du prisme DIC | D |
| Field Number (FN) | 22 |
| Distance de travail libre (WD en mm) | 3.3 |
| Immersion | Eau |
| Diaphragme d'iris | Sans |
| Grossissement | 40⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-DIC, FLUO |
| Ouverture numérique | 0.8 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | APO |
| RESSORT CHARGÉ | Non |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | - |
| Techniques | Electrophysiology, MP |

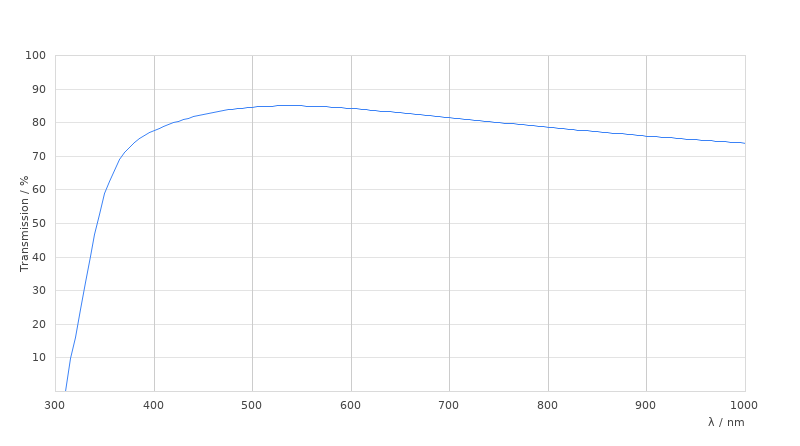

| Transmission | UV (340nm) |
