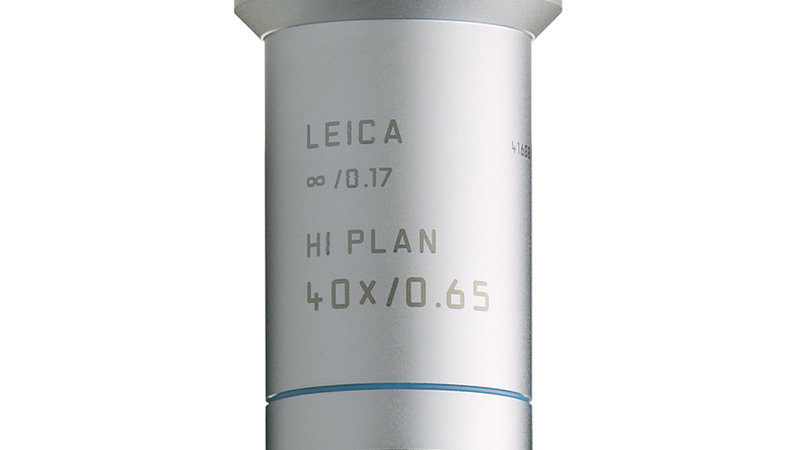

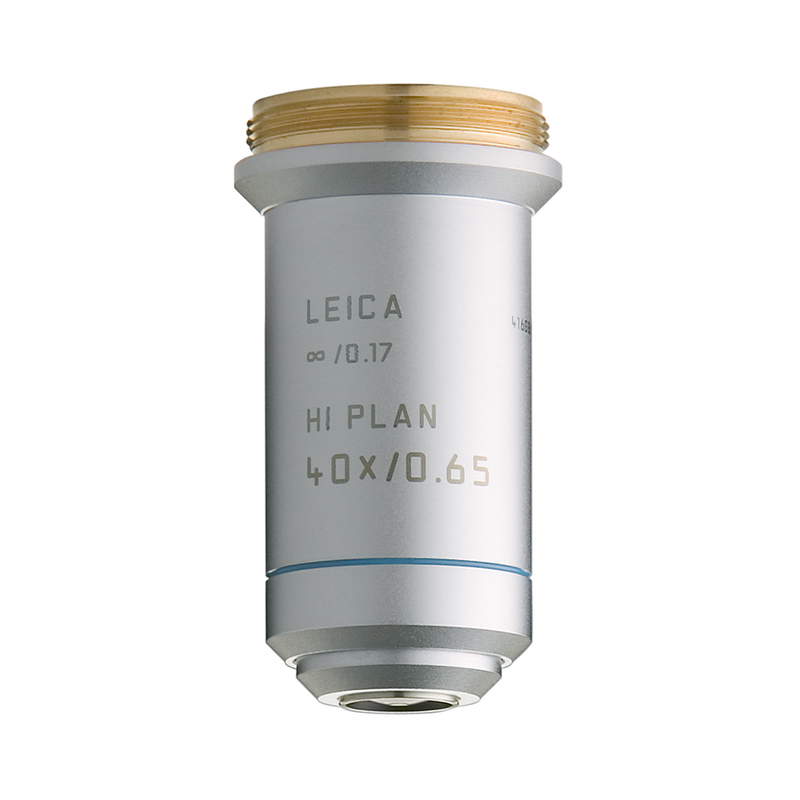

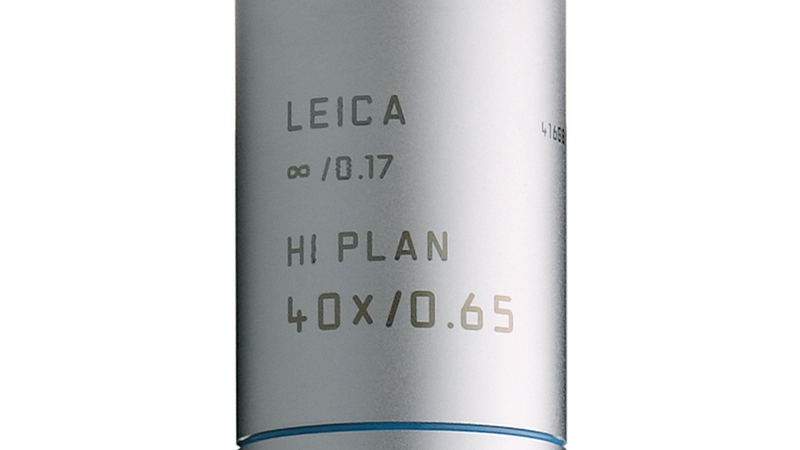

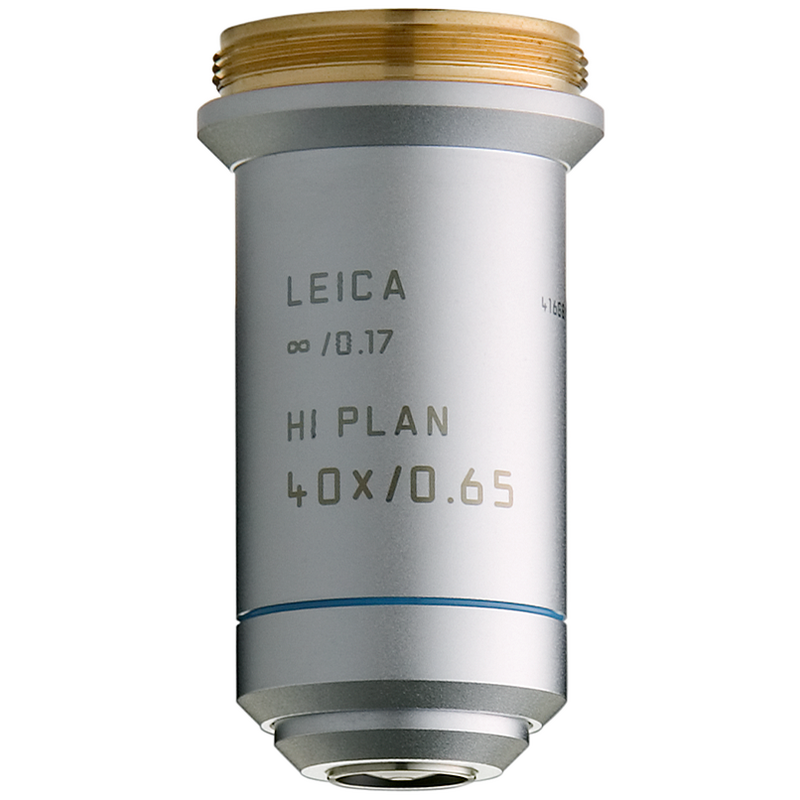

Microscope Objective HI PLAN 40x/0,65
Product No. 11506236

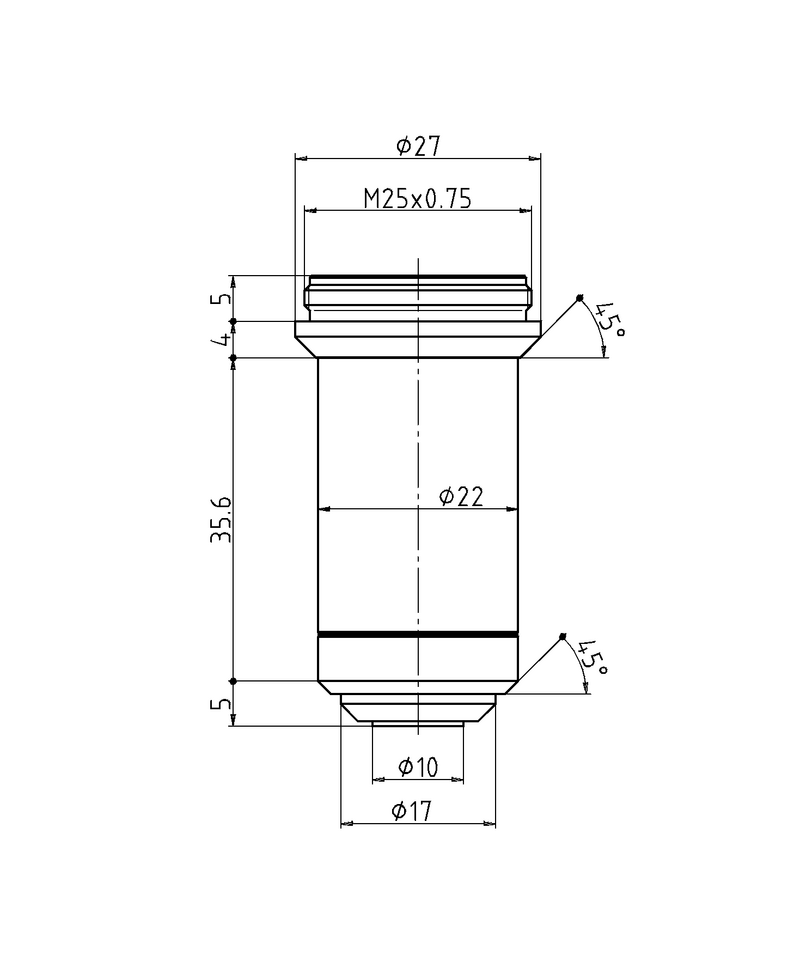

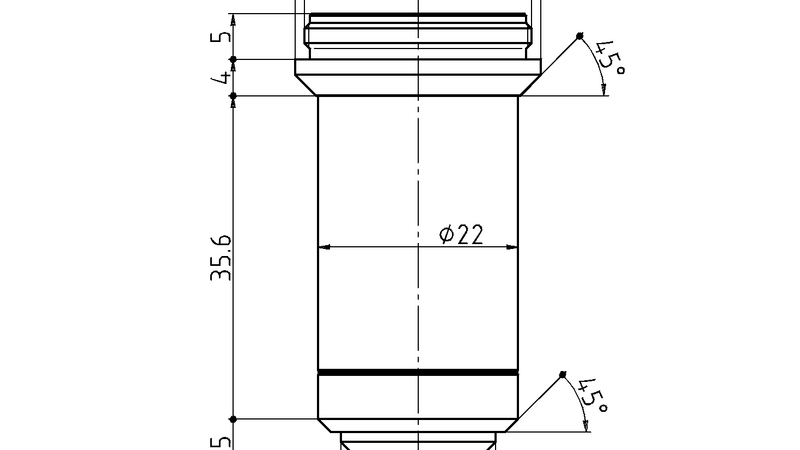

Objective HI PLAN 40x/0,65 has a magnification of 40X and a numerical aperture of 0.65. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 0.35mm and a FN of 20.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Product Number | 11506236 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Avec |
| Sortie de la position de la pupille / du prisme DIC | - |
| Field Number (FN) | 20 |
| Distance de travail libre (WD en mm) | 0.35 |
| Immersion | Sec |
| Diaphragme d'iris | Sans |
| Grossissement | 40⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-DF, FLUO |
| Ouverture numérique | 0.65 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | HI PLAN |
| RESSORT CHARGÉ | Non |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | - |
| Techniques | |
| Transmission | - |
