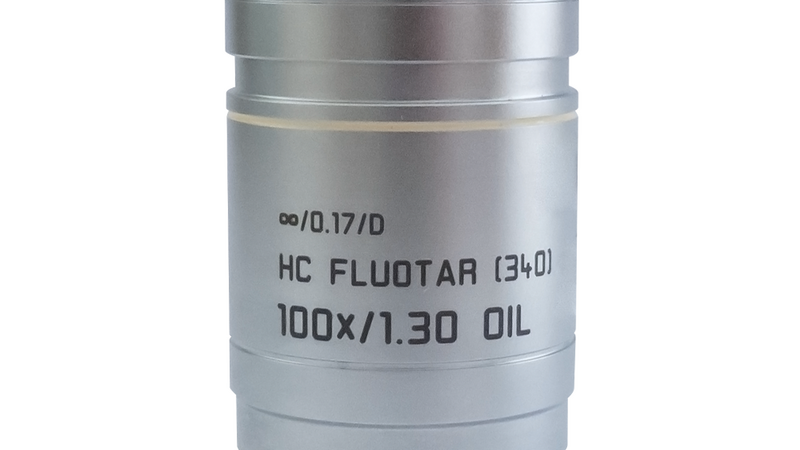

Microscope Objective HC FLUOTAR (340) 100x/1,30 OIL
Product No. 11506368
Objective HC FLUOTAR (340) 100x/1,30 OIL has a magnification of 100X and a numerical aperture of 1.3. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.14mm and a FN of 12.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Product Number | 11506368 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Avec |
| Sortie de la position de la pupille / du prisme DIC | D |
| Field Number (FN) | 12 |
| Distance de travail libre (WD en mm) | 0.14 |
| Immersion | Huile |
| Diaphragme d'iris | Sans |
| Grossissement | 100⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-DIC, FLUO |
| Ouverture numérique | 1.3 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | HC FLUOTAR |
| RESSORT CHARGÉ | Non |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | - |
| Techniques | Fura, LMD |

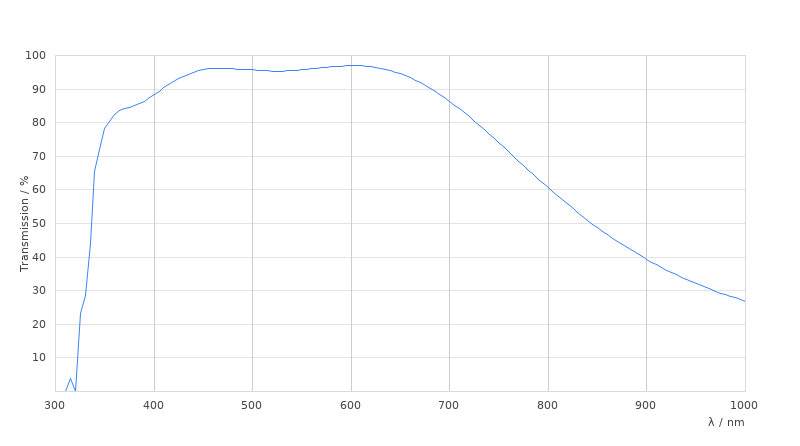

| Transmission | UV (340nm) |
