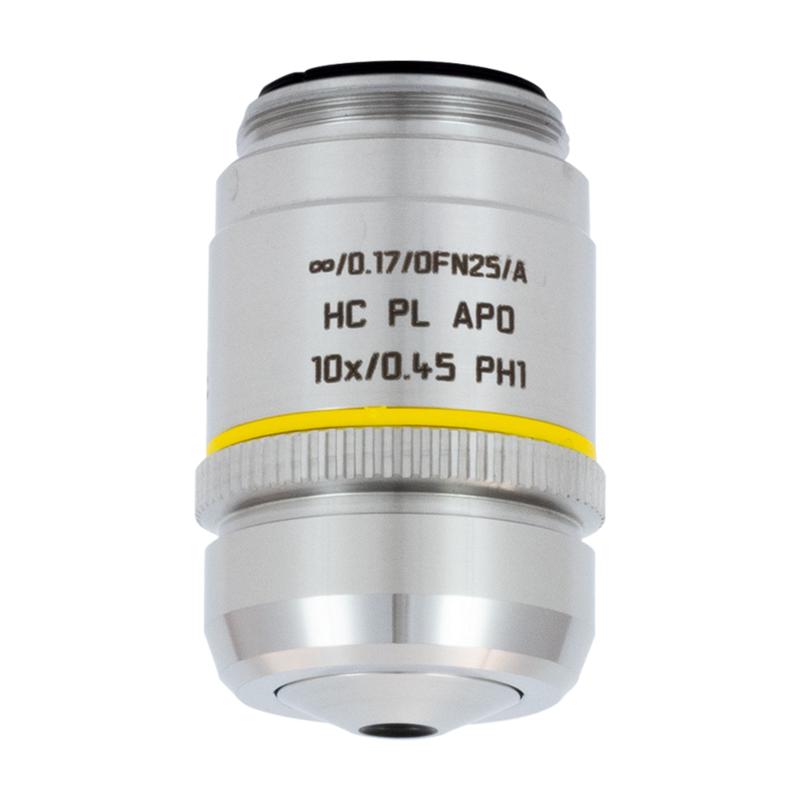

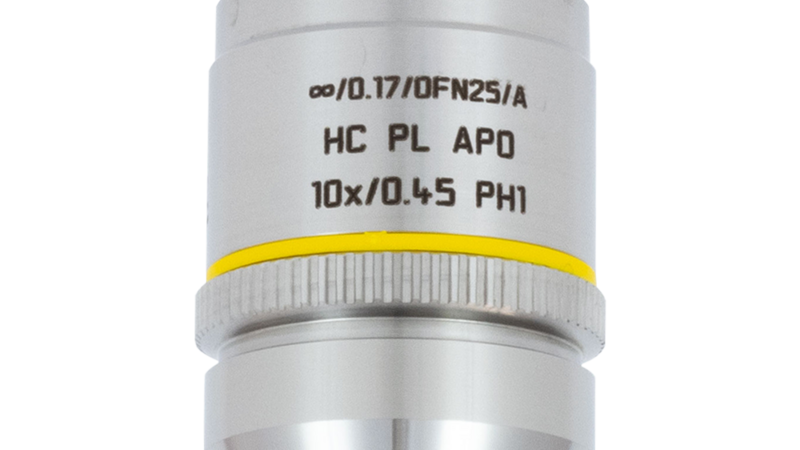

Microscope Objective HC PL APO 10x/0,45 PH1
Product No. 11506411
Objective HC PL APO 10x/0,45 PH1 has a magnification of 10X and a numerical aperture of 0.45. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 2.8mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Product Number | 11506411 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Avec |
| Sortie de la position de la pupille / du prisme DIC | A |
| Field Number (FN) | 25 |
| Distance de travail libre (WD en mm) | 2.8 |
| Immersion | Sec |
| Diaphragme d'iris | Sans |
| Grossissement | 10⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-DIC, TL-DF, TL-PH, TL-IMC, FLUO |
| Ouverture numérique | 0.45 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | PLAN APO |
| RESSORT CHARGÉ | Non |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | Compatible AFC |
| Techniques | PH1 |

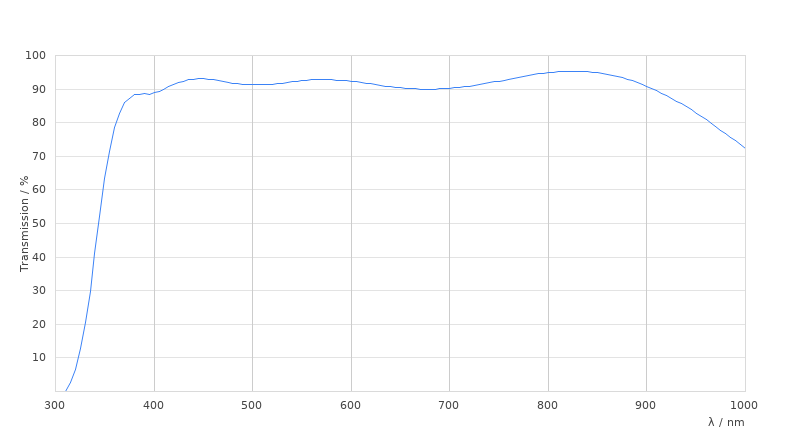

| Transmission | UV (340nm) |
