Microscope Objective HC PL APO 40x/1,25 GLYC CORR CS2
Product No. 11506422
Objective HC PL APO 40x/1,25 GLYC CORR CS2 has a magnification of 40X and a numerical aperture of 1.25. For use in glycerol immersion material environment and attached with an objective thread of M25 having a free working distance of 0.35mm and a FN of 24.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Product Number | 11506422 |
|---|---|
| BAGUE DE CORRECTION (CORR) | CORR |
| Lamelle couvre-objet | Avec |
| Sortie de la position de la pupille / du prisme DIC | E |
| Field Number (FN) | 24 |
| Distance de travail libre (WD en mm) | 0.35 |
| Immersion | GLYC |
| Diaphragme d'iris | Sans |
| Grossissement | 40⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-DIC, FLUO |
| Ouverture numérique | 1.25 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | PLAN APO |
| RESSORT CHARGÉ | Oui |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | Compatible AFC |
| Techniques | CS2 |

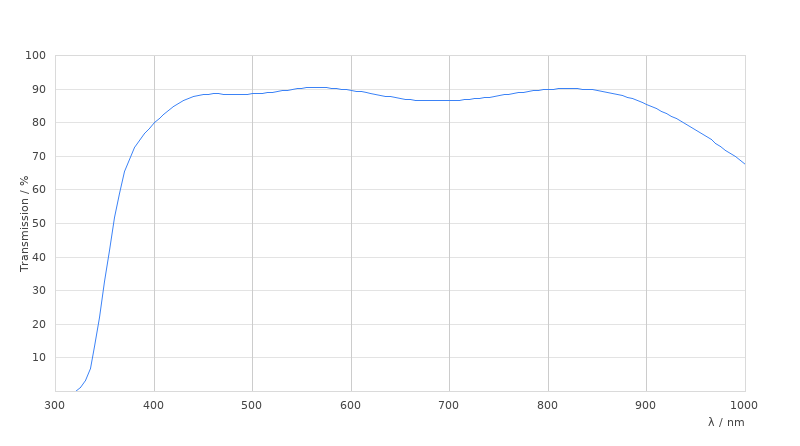

| Transmission | UV (340nm) |
