Microscope Objective N PLAN L 50x/0.50 MIRAU
Product No. 11532672
Objective N PLAN 50x/0.50 2.52 Mirau has a magnification of 50X and a numerical aperture of 0.5mm. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.2.52mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Numéro d'article | 11532672 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Sans |
| Sortie de la position de la pupille / du prisme DIC | - |
| Field Number (FN) | 25 |
| Distance de travail libre (WD en mm) | 2.52 |
| Immersion | Sec |
| Diaphragme d'iris | Sans |
| Grossissement | 50⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-P, IL-BF, IL-P, FLUO |
| Ouverture numérique | 0.5 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | N PLAN |
| RESSORT CHARGÉ | Non |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | - |
| Techniques | IL, Interferometry |

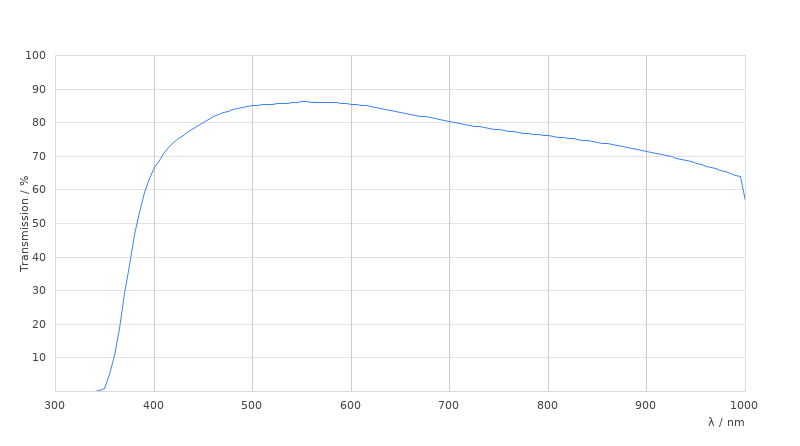

| Transmission | UV (365nm) |
