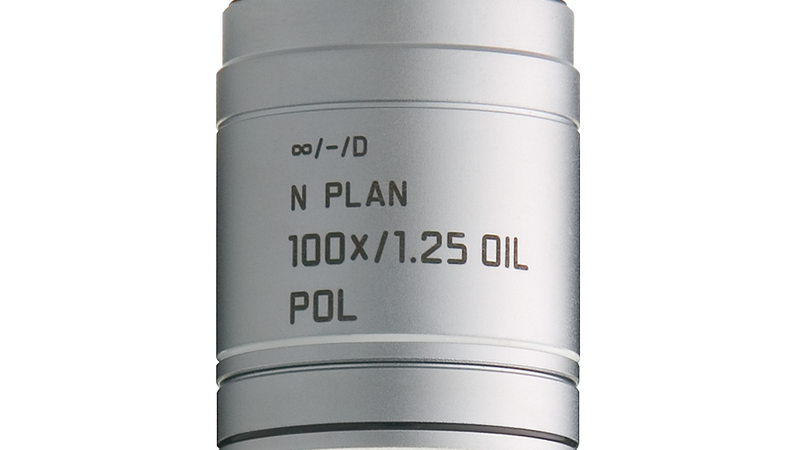

Microscope Objective N PLAN 100x/1,25 OIL POL
Product No. 11556053
Objective N PLAN 100x/1,25 OIL POL has a magnification of 100X and a numerical aperture of 1,25. For use in immersion OIL material environment and attached with an objective thread of M25 having a free working distance of 0.12mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Product Number | 11556053 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Avec & sans |
| Sortie de la position de la pupille / du prisme DIC | D |
| Field Number (FN) | 22 |
| Distance de travail libre (WD en mm) | 0.12 |
| Immersion | Huile |
| Diaphragme d'iris | Sans |
| Grossissement | 100⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-DIC, TL-P, TL-POL, FLUO |
| Ouverture numérique | 1.25 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | N PLAN |
| RESSORT CHARGÉ | Oui |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | - |
| Techniques | POL |

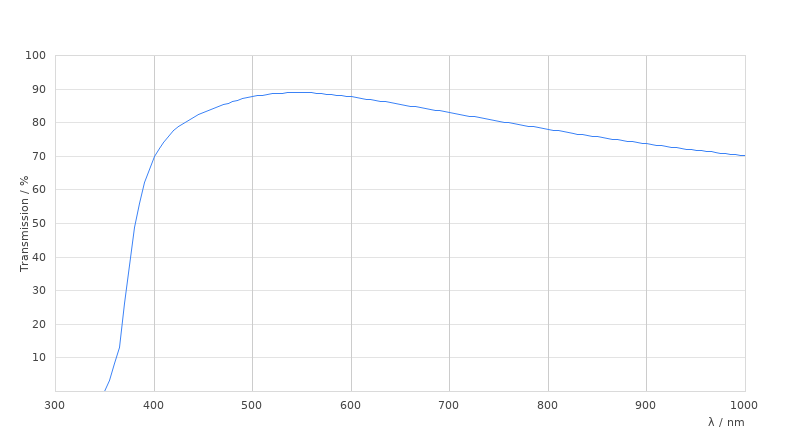

| Transmission | UV (365nm) |
