Microscope Objective EPI 50x/0.85 OIL POL XLR
Product No. 11556090
Objective EPI 50x/0.85 OIL POL XLR has a magnification of 50X and a numerical aperture of 0.85. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.27mm and a FN of 16.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Product Number | 11556090 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Avec & sans |
| Sortie de la position de la pupille / du prisme DIC | - |
| Field Number (FN) | 16 |
| Distance de travail libre (WD en mm) | 0.27 |
| Immersion | Huile |
| Diaphragme d'iris | Sans |
| Grossissement | 50⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-POL, IL-BF, IL-POL, FLUO |
| Ouverture numérique | 0.85 |
| FILETAGE DE L’OBJECTIF | M25 |
| Type d'objectif | N |
| RESSORT CHARGÉ | Oui |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | - |
| Techniques | IL, POL |

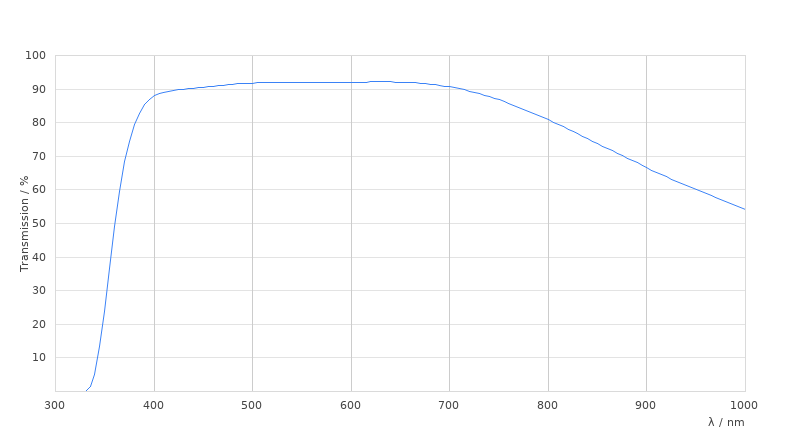

| Transmission | UV (365nm) |
