Microscope Objective N PLAN EPI 100x/0,85 BD
Product No. 11566075
Objective N PLAN EPI 100x/0,85 BD has a magnification of 100X and a numerical aperture of 0.85. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 0.33mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Product Number | 11566075 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Sans |
| Sortie de la position de la pupille / du prisme DIC | D |
| Field Number (FN) | 22 |
| Distance de travail libre (WD en mm) | 0.33 |
| Immersion | Sec |
| Diaphragme d'iris | Sans |
| Grossissement | 100⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, TL-P, IL-BF, IL-DIC, IL-P, IL-DF, FLUO |
| Ouverture numérique | 0.85 |
| FILETAGE DE L’OBJECTIF | M32 |
| Type d'objectif | N PLAN |
| RESSORT CHARGÉ | Non |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | - |
| Techniques | BD, IL |

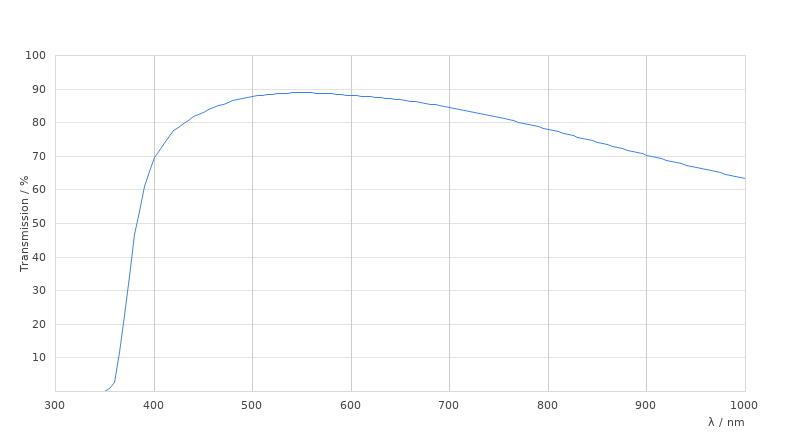

| Transmission | - |
