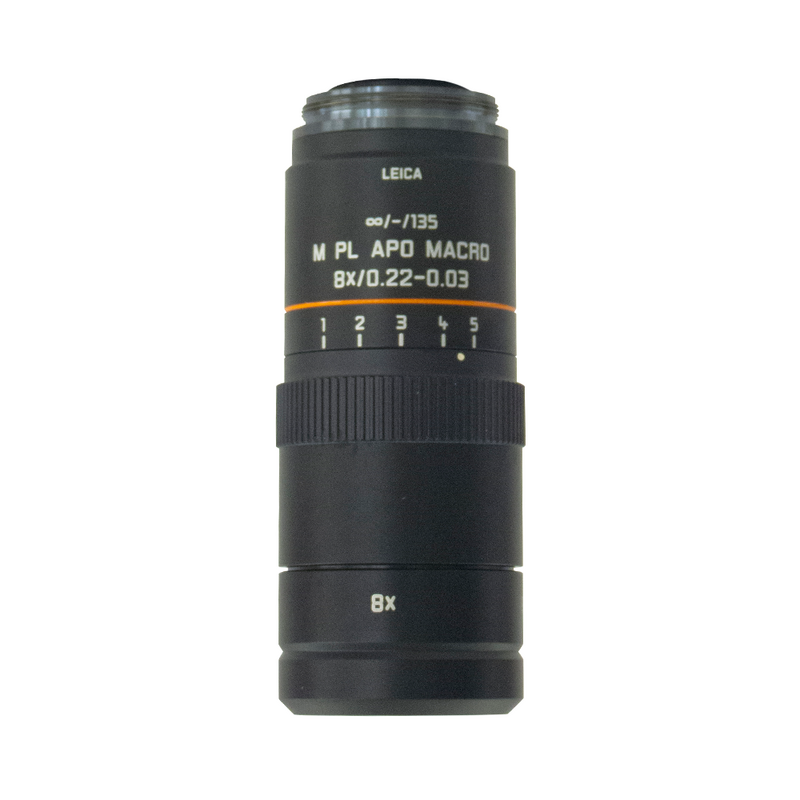

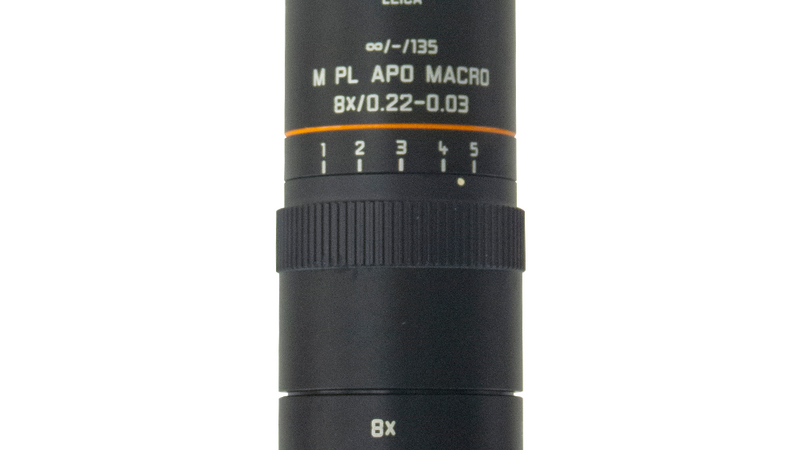

Microscope Objective M PL APO MACRO 8x/0.22-0.03
Product No. 11581097
Objective M PL APO MACRO 8x/0.22-0.03 has a magnification of 8X and a numerical aperture of 0.22. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 44.6mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Caractéristiques techniques
| Product Number | 11581097 |
|---|---|
| BAGUE DE CORRECTION (CORR) | - |
| Lamelle couvre-objet | Avec & sans |
| Sortie de la position de la pupille / du prisme DIC | - |
| Field Number (FN) | 22 |
| Distance de travail libre (WD en mm) | 44.6 |
| Immersion | Sec |
| Diaphragme d'iris | 0.03 |
| Grossissement | 8⨉ |
| MÉTHODES DE CONTRASTE | TL-BF, FLUO |
| Ouverture numérique | 0.22 |
| FILETAGE DE L’OBJECTIF | M32 |
| Type d'objectif | PLAN APO |
| RESSORT CHARGÉ | Non |
| ADAPTÉ À AFC (CONTRÔLE ADAPTATIF DE LA MISE AU POINT) | - |
| Techniques | FSC |
| Transmission | UV (365nm) |
