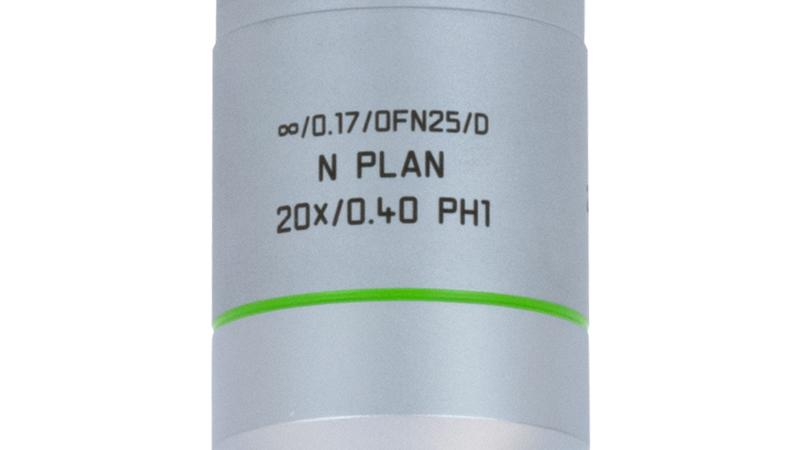

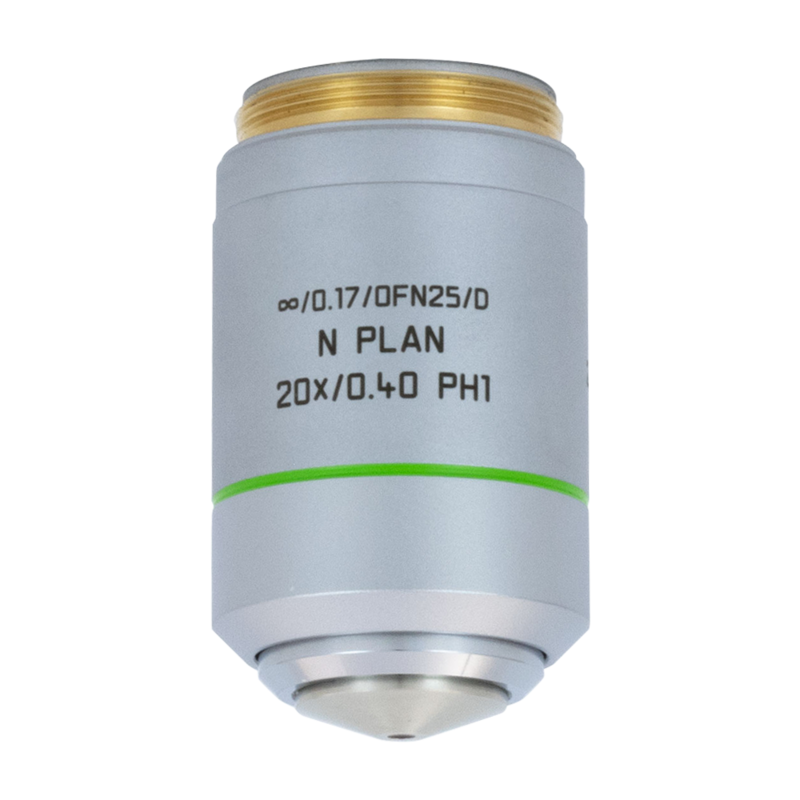

Microscope Objective N PLAN 20x/0,40 PH1

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
N PLAN 20x/0,40 PH1
N PLAN 20x/0,40 PH1
N PLAN 20x/0,40 PH1
N PLAN 20x/0,40 PH1
N PLAN 20x/0,40 PH1
N PLAN 20x/0,40 PH1

Technische Spezifikationen

Artikelnummer 11506098
Korrekturring (CORR) -
Deckglas Mit
Lage der Austrittspupille/DIC-Prisma -
Field Number (FN) 22
Freier Arbeitsabstand (WD in mm) 0.39
Immersion Trocken
Irisblende Ohne
Vergrößerung 20⨉
Kontrastmethoden TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, FLUO
Numerische Apertur 0.4
Objektivgewinde M25
Objektivtyp N PLAN
Präparatschutz Nein
Geeignet für AFC (Adaptive Focus Control) -
Verfahren PH1

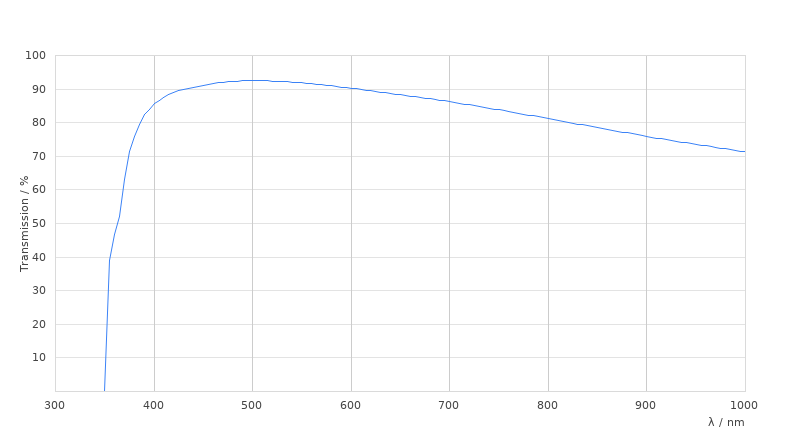

Transmission UV (340nm)
