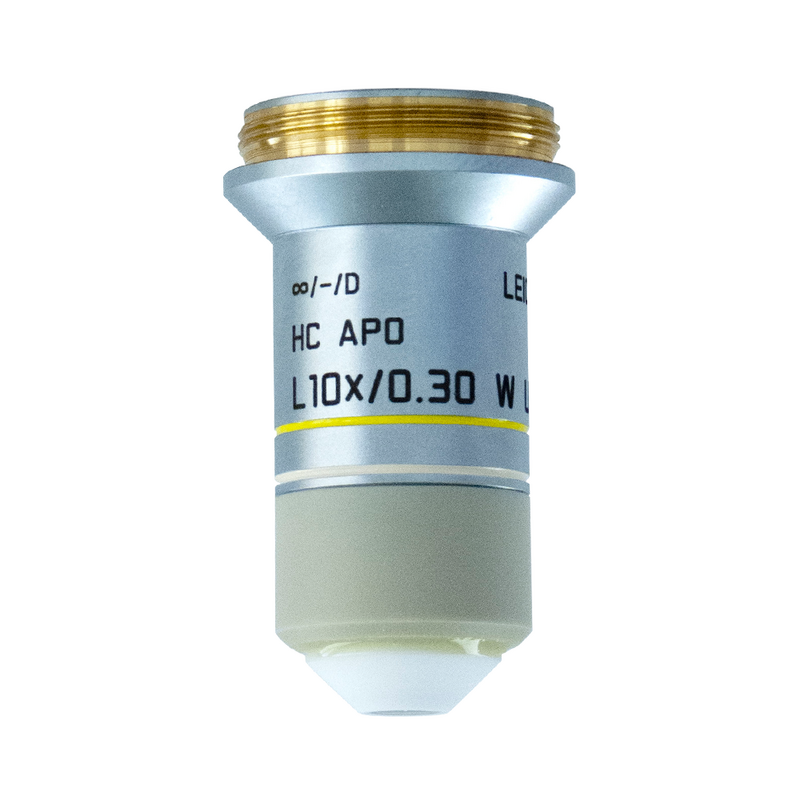

Microscope Objective HC APO L 10x/0,30 W U-V-I
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technische Spezifikationen
Artikelnummer | 11506142 |
---|---|
Korrekturring (CORR) | - |
Deckglas | Mit und ohne |
Lage der Austrittspupille/DIC-Prisma | D |
Field Number (FN) | 20 |
Freier Arbeitsabstand (WD in mm) | 3.6 |
Immersion | Wasser |
Irisblende | Ohne |
Vergrößerung | 10⨉ |
Kontrastmethoden | TL-BF, TL-DIC, TL-DF, FLUO |
Numerische Apertur | 0.3 |
Objektivgewinde | M25 |
Objektivtyp | APO |
Präparatschutz | Nein |
Geeignet für AFC (Adaptive Focus Control) | - |
Verfahren | Electrophysiology, MP |

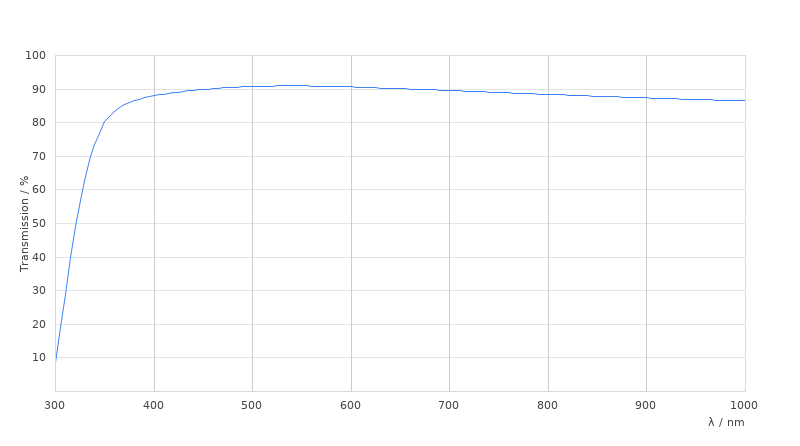

Transmission | UV (340nm) |
