Microscope Objective N PLAN H 20x/0,40

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
N PLAN H 20x/0,40
N PLAN H 20x/0,40
N PLAN H 20x/0,40
N PLAN H 20x/0,40
N PLAN H 20x/0,40
N PLAN H 20x/0,40

Technische Spezifikationen

Artikelnummer 11566056
Korrekturring (CORR) -
Deckglas 1.8 Quartz
Lage der Austrittspupille/DIC-Prisma C
Field Number (FN) 22
Freier Arbeitsabstand (WD in mm) 10.6
Immersion Trocken
Irisblende Ohne
Vergrößerung 20⨉
Kontrastmethoden TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO
Numerische Apertur 0.4
Objektivgewinde M25
Objektivtyp N PLAN
Präparatschutz Nein
Geeignet für AFC (Adaptive Focus Control) -
Verfahren

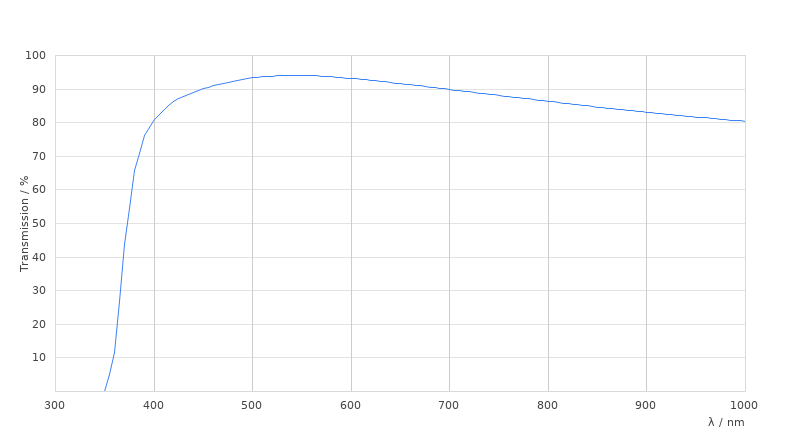

Transmission UV (365nm)
