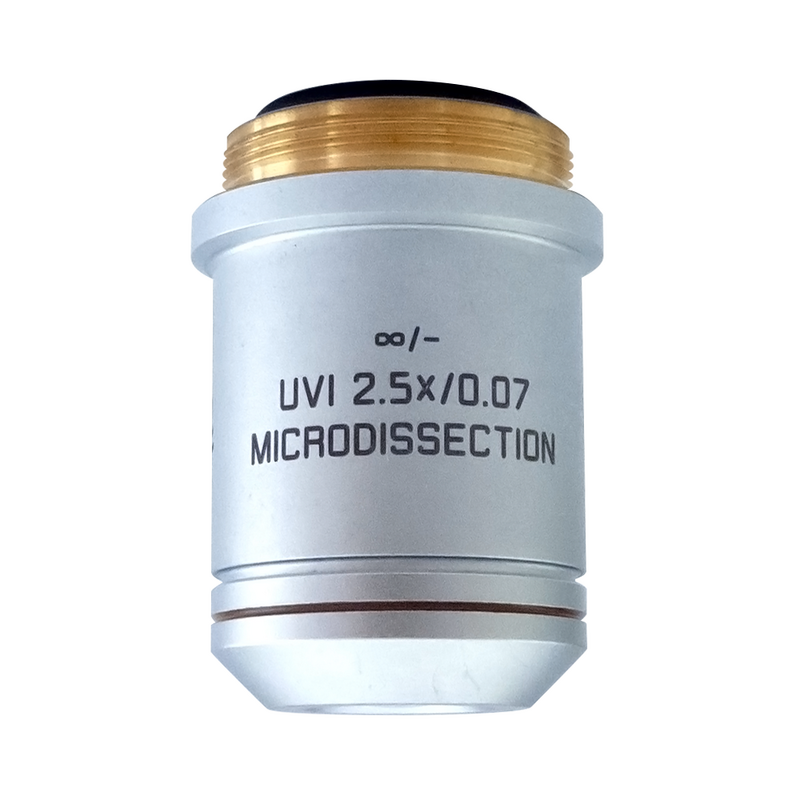

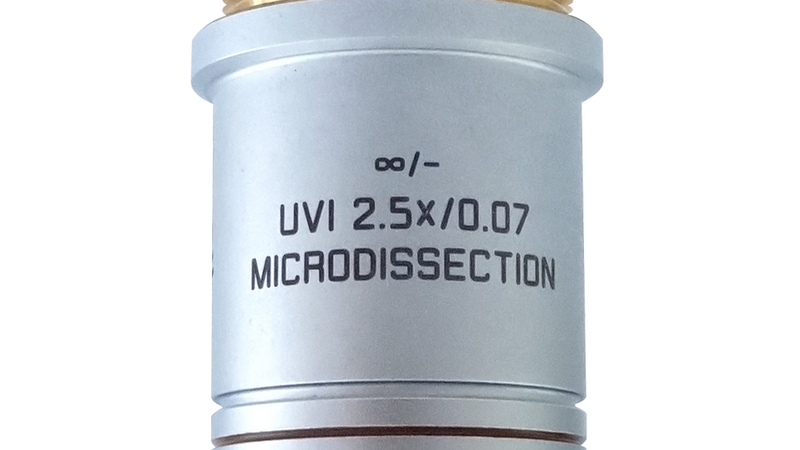

Microscope Objective UVI 2,5x/0,07 MICRODISSECTION

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
UVI 2,5x/0,07 MICRODISSECTION
UVI 2,5x/0,07 MICRODISSECTION
UVI 2,5x/0,07 MICRODISSECTION
UVI 2,5x/0,07 MICRODISSECTION
UVI 2,5x/0,07 MICRODISSECTION
UVI 2,5x/0,07 MICRODISSECTION

Technische Spezifikationen

Artikelnummer 11518148
Korrekturring (CORR) -
Deckglas Mit und ohne
Lage der Austrittspupille/DIC-Prisma -
Field Number (FN) 22
Freier Arbeitsabstand (WD in mm) 11.7
Immersion Trocken
Irisblende Ohne
Vergrößerung 2.5⨉
Kontrastmethoden TL-BF, TL-DF, FLUO
Numerische Apertur 0.07
Objektivgewinde M25
Objektivtyp HI PLAN
Präparatschutz Nein
Geeignet für AFC (Adaptive Focus Control) -
Verfahren LMD

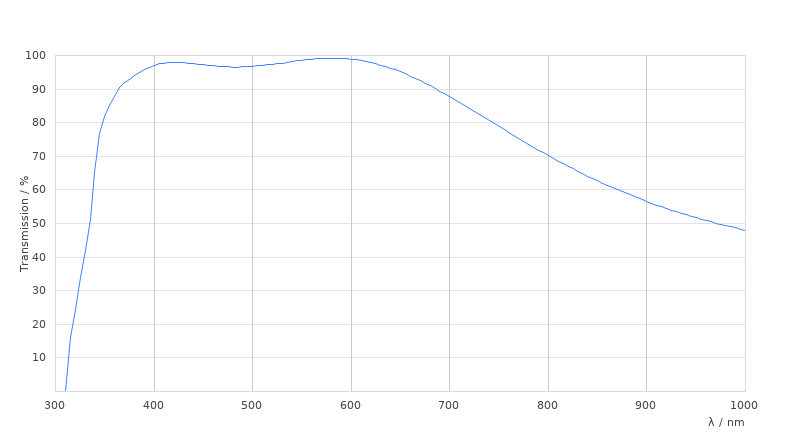

Transmission UV (340nm)
