HC PL APO 20x/0,75 IMM CORR CS2

Article Number 11506343
Correction Ring (CORR) CORR
Coverglass With & without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.66
Immersion IMM
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 0.75
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2, Waterdispenser
Transmission UV (365nm)

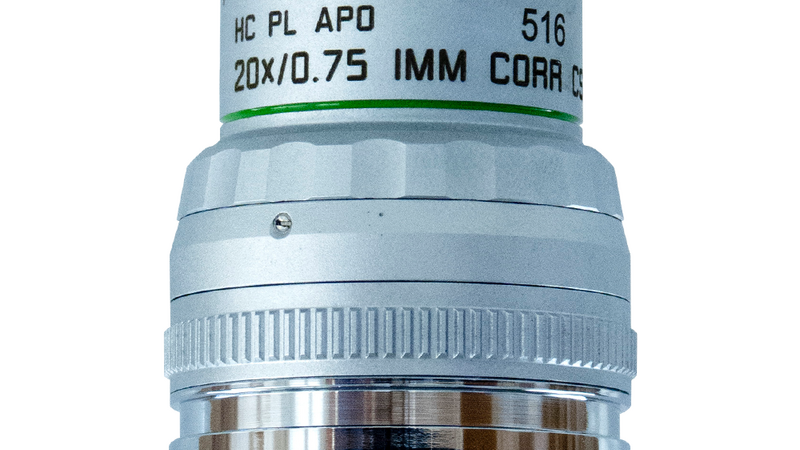

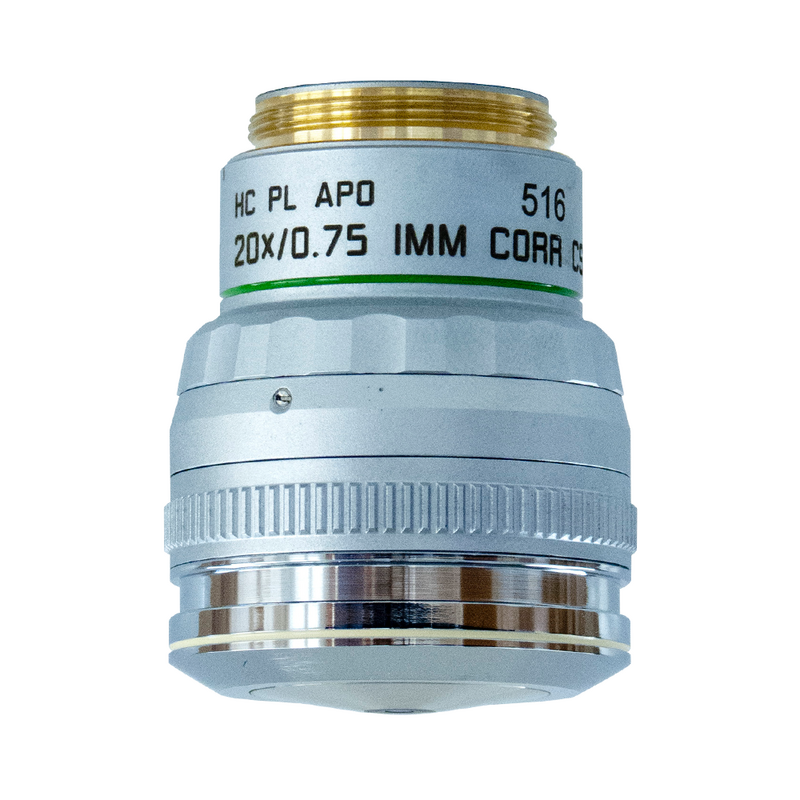

Figure

HC PL APO 20x/0,75 IMM CORR CS2

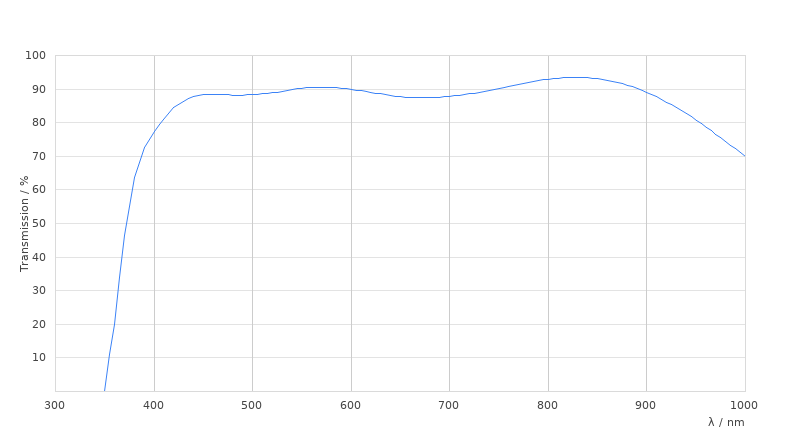

Transmission Curve

HC PL APO 20x/0,75 IMM CORR CS2

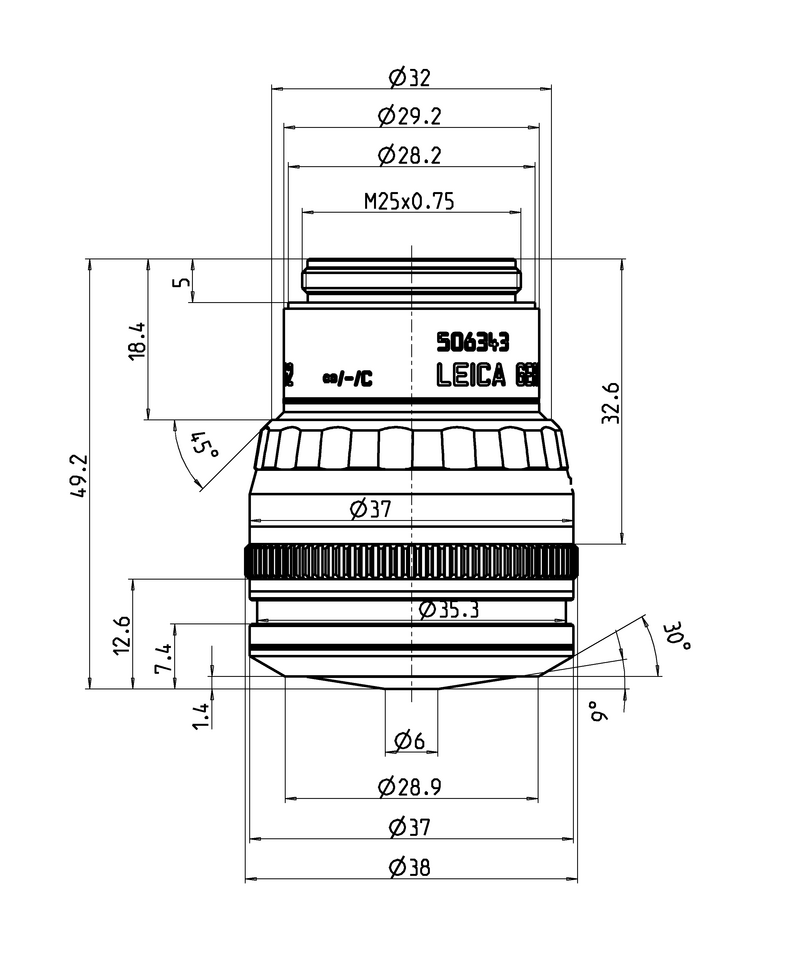

Dimension Sheet

HC PL APO 20x/0,75 IMM CORR CS2
