HC PL IRAPO 20x/0,75 W

Article Number 11506344
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 0.67
Immersion Water
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.75
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques MP
Transmission IR (up to 1300nm)

Figure

HC PL IRAPO 20x/0,75 W

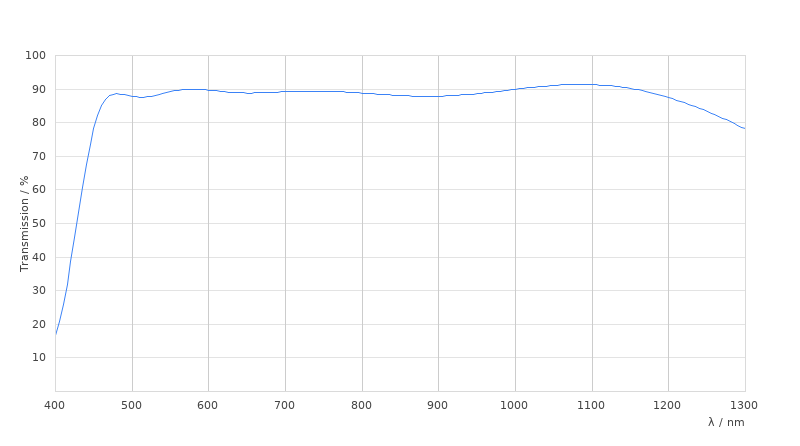

Transmission Curve

HC PL IRAPO 20x/0,75 W

Dimension Sheet

HC PL IRAPO 20x/0,75 W
